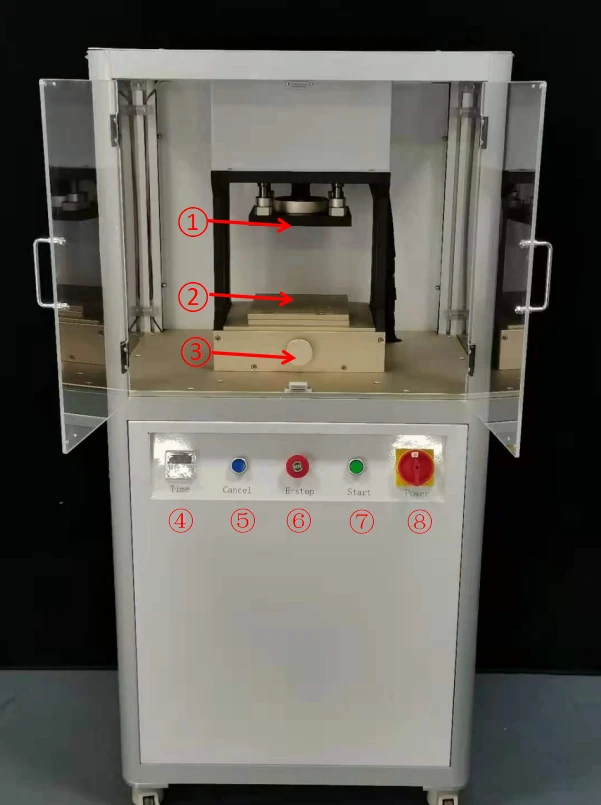

① Lower Pressing Plate: Serves as the pressing component for product assembly, applying pressure to workpieces during the pressing process to ensure secure fitting.
② Backing Plate: A matching accessory designed to accommodate atomizers of different lengths, ensuring stable positioning of atomizers with varying dimensions during operation.
③ Lifting Adjustment Knob: Used to adjust the vertical movement of the base plate, with an adjustment range of 0-5mm. Clockwise rotation raises the base plate, while counterclockwise rotation lowers it.
④ Time Relay: Controls the dwell time of the lower pressing plate when it reaches the lowest position (i.e., the pressure-holding duration required for product pressing).
⑤ Cancel Button: Functions as the control button for the upward movement of the lower pressing plate; pressing it cancels the ongoing pressing process and lifts the lower pressing plate back to its original position.
⑥ Emergency Stop Button: In case of emergency, pressing this button immediately stops the downward movement of the pressing plate. Rotate the button to reset it and restore the equipment to normal standby status.
⑦ Start Button: This button initiates the equipment's pressing cycle, triggering the downward movement of the lower pressing plate to start the product assembly process.
⑧ Power Switch: Controls the main power supply of the equipment, enabling users to turn the device on or off.
⑨ Power Socket: Insert the provided matching power cord (included in accessories) into this socket; the equipment operates at an AC voltage of 110V.
