Dual-station Nicotine filling Machine Electric CBD Oil Injector
Overview
The electric CBD oil injector is a specialized electric device engineered for quick, user-friendly, and accurate simultaneous oil filling of e-cigarette products in various specifications. It eliminates manual pipetting errors, standardizes fill volumes, and adapts to common CBD e-cigarette formats (e.g., cartridges, pods, disposable vapes).

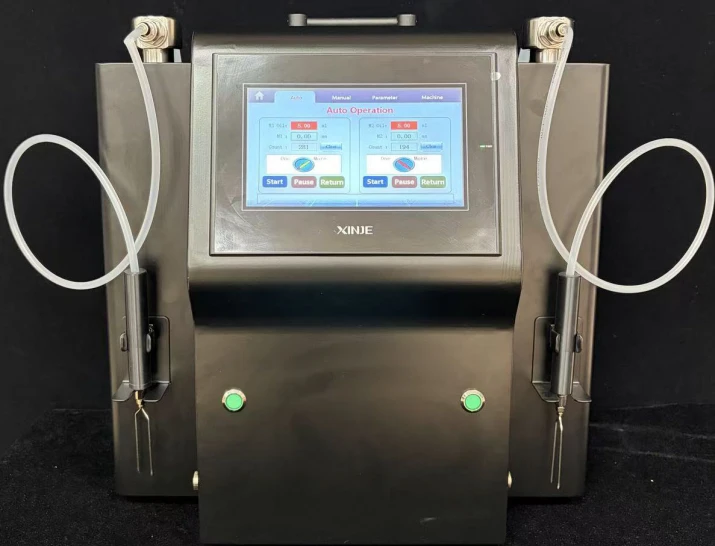

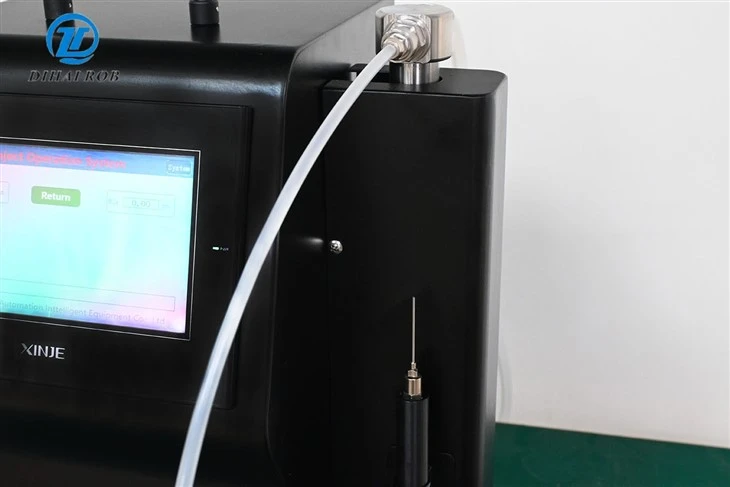

List of Equipment Components (as shown in the diagram on the right)
| Number | Component Name |
|---|---|
| 1 | Oil Injection Pump A |
| 2 | Touch Screen |
| 3 | Oil Injection Pen A |
| 4 | Foot Switch Interface A |
| 5 | Indicator Light A |
| 6 | Indicator Light B |
| 7 | Foot Switch Interface B |
| 8 | Oil Injection Pen B |
| 9 | Oil Injection Pump B |
Main Structure & Working Principle
1. Main Structure
The device consists of mechanical components and an electrical control system, with a touchscreen interface for operation.
Mechanical Assembly: Includes an electric oil injection module, precision positioning fixtures, and a leak-proof liquid reservoir.
Electrical System: Features a touchscreen display, microcontroller, and sensors (for volume, temperature, and positioning).
Delivery Note: The device is shipped fully assembled-no on-site installation is required by the user.
Working Principle
This injector is specifically designed for CBD oil filling in e-cigarettes. Its mechanical and electrical systems work in tandem:
The electric oil injection module draws pre-measured CBD oil from the reservoir.
Positioning sensors align the injection needle with e-cigarette cartridges/pods.
All operational data (fill volume, speed, temperature) is transmitted to the touchscreen, enabling automatic control and real-time monitoring of injection parameters.
A built-in heating element (adjustable 20–40°C) prevents CBD oil from thickening, ensuring smooth flow (critical for high-viscosity CBD formulations).
Key Performance Specifications
| Item | Specification |
|---|---|
| Input Voltage | Single-phase AC 110V/60Hz (or custom 220V/50Hz) |
| Input Power | 0.8kW |
| Device Dimensions | 420×260×420mm (compact footprint for lab/production benchtops) |
| Device Weight | 15kg |
| Oil Volume Accuracy (Rated Stroke) | Error ≤1% (meets CBD product labeling compliance standards) |
| Oil Volume Accuracy (Repeatability) | Error 0.3%–0.7% (ensures consistent CBD dosage per e-cigarette unit) |
| Injection Volume Range | 0.5–20mL (compatible with 0.5mL pods to 20mL refillable cartridges) |
| Fluid-Contact Materials | Silicone (seals), stainless steel (needle/reservoir) - food-grade, CBD-compatible |
Enhanced Features for CBD Applications
CBD-Specific Compatibility
The reservoir and needle are made of CBD-stable materials (stainless steel 316L, food-grade silicone) to prevent oil degradation or contamination.
A dedicated "CBD mode" adjusts injection speed (1–5mL/s) to accommodate high-viscosity CBD oils (e.g., full-spectrum formulations with terpenes).
Batch Processing Efficiency
Equipped with a 6-position fixture (expandable to 12 positions) for simultaneous filling of multiple e-cigarette units, reducing labor time by 60% vs. manual filling.
Compliance & Traceability
The touchscreen logs batch data (fill volume, timestamp, operator ID) for CBD product traceability-critical for regulatory compliance (e.g., FDA, EU THC limits).
Easy Cleaning
All fluid-contact parts (reservoir, needle, fixtures) are detachable and compatible with isopropyl alcohol sanitization, meeting CBD production hygiene standards.
