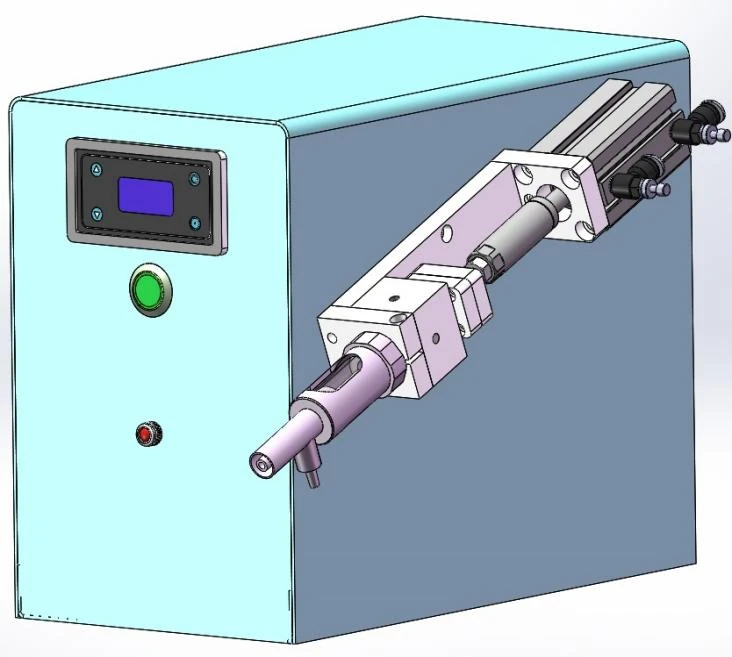

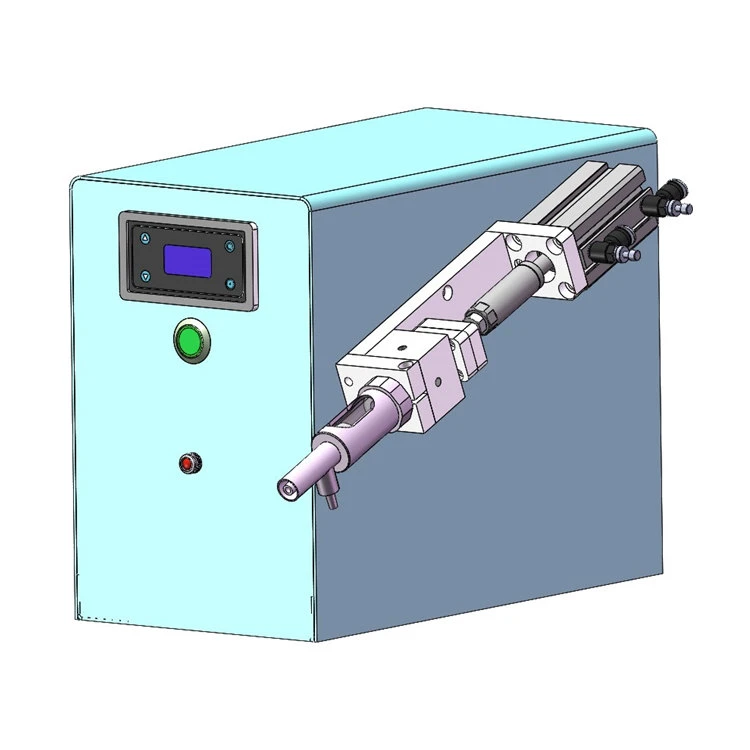

THC Single Head Pneumatic Filling Machine

1. The power is driven by a fixed set of gears and an electronic speed regulating motor, ensuring smooth operation and low noise. The speed can be continuously adjusted.

2. Good metering pump, accuracy ± 0.5ml.

3. The filling volume can range from 1-1000 ml, and the filling machine with corresponding specifications can be selected to achieve filling. The machine is portable and can be placed at will. The filling volume can be slightly adjusted to meet different user requirements.

4. Power supply: 220v

5. Overall dimension: 180 × three hundred × 480mm

6. Weight: 13kg

1. Simple and reliable structure with few faults;

2. The cone piston is adopted, with good sealing performance, accurate liquid dispensing volume, and convenient liquid volume adjustment;

3. The liquid contacting parts are made of stainless steel and are easy to load and unload, allowing sterile dispensing;

4. The cylinder barrel, push rod, and piston are made of stainless steel, which is corrosion resistant and wear-resistant;

5. Speed continuously adjustable, easy to operate.

This device can be started using a foot switch or by pressing the time relay.

The amount of oil injected can be adjusted through the oil injection adjusting rod. After adjustment, lock the adjusting rod nut.

The speed of oil injection and suction can be adjusted through the cylinder regulating valve, which is fast in clockwise direction and slow in counterclockwise direction.

Parameter Description: OP is the ON time, CL is the OFF time, and LOP is the number of cycles (1 to 9999, "------")

Represents infinite cycles)

Timing range: 0.01s (minimum) to 9999 minutes (maximum) continuously adjustable

(1) Press and hold the setting button to enter the setting interface;

(2) First, set the working mode, and the working mode will flash to remind you. Set the working mode by pressing the add/subtract/key briefly

Operation mode;

(3) Briefly press the setting button to select the working mode and enter the system parameter setting;

(4) In the system parameter setting interface, short press the setting key to switch the system parameter to be modified, short press/long press

Add/subtract/press to modify; (Note: Short press of the setting button in P0 to P3/P8/P9 modes is invalid)

(5) In the OP/CL parameter modification interface, briefly press the pause button to switch the timing unit (1s/0.1s/0.01s/1min);

(6) After setting all parameters, long press the setting button to save the parameter settings and exit the setting interface.
