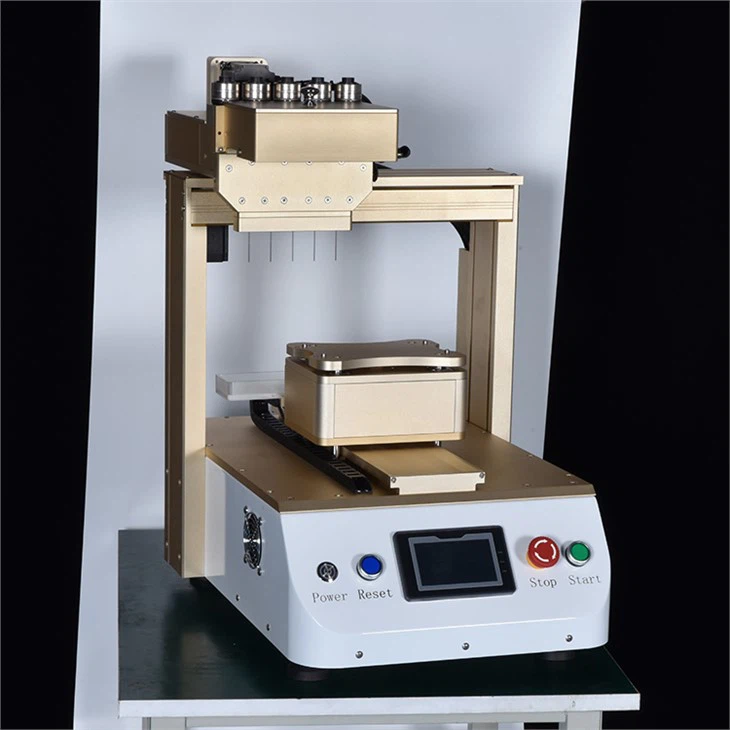

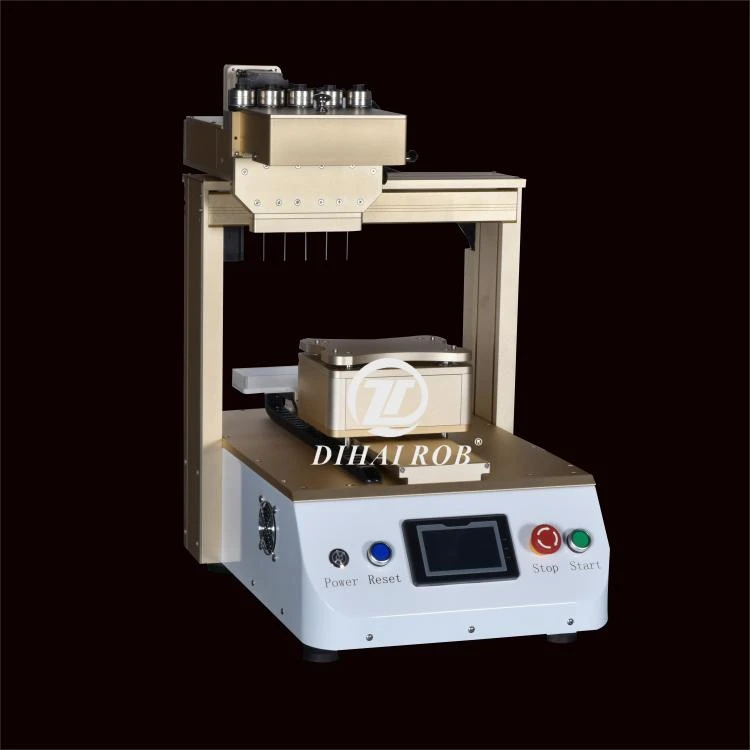

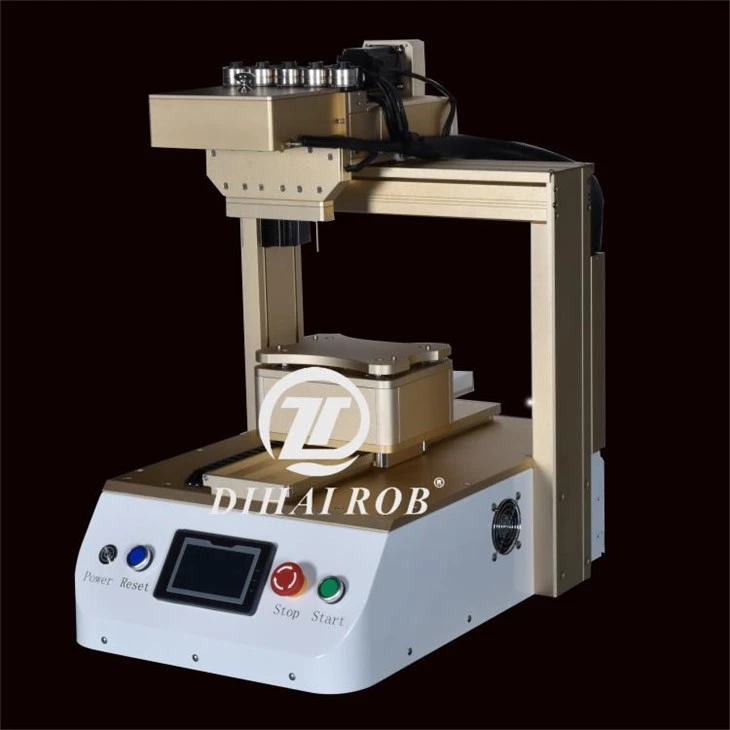

5-Headed CBD Vape Pen Filler with Auto Heat: Fill 510 Thread, 1ml/2ml Pods & Disposable Cartridges
DiHai 5 Heads Pod Filling Machine Cartridge Oil Filling Machine with Thick Oil Heating (THC 5-head filling machine)
The electric electronic cigarette oiling machine is a type of electric electronic cigarette oiling equipment that can simultaneously oil a variety of electronic cigarettes in a quick, convenient, and accurate manner.
Principal Structure and Operation
a. Primary structure
It is primarily made up of mechanical and electrical control devices. The electrical component uses a touch screen display. (The equipment is shipped in its entirety, with no customer installation.)
b. Working principle

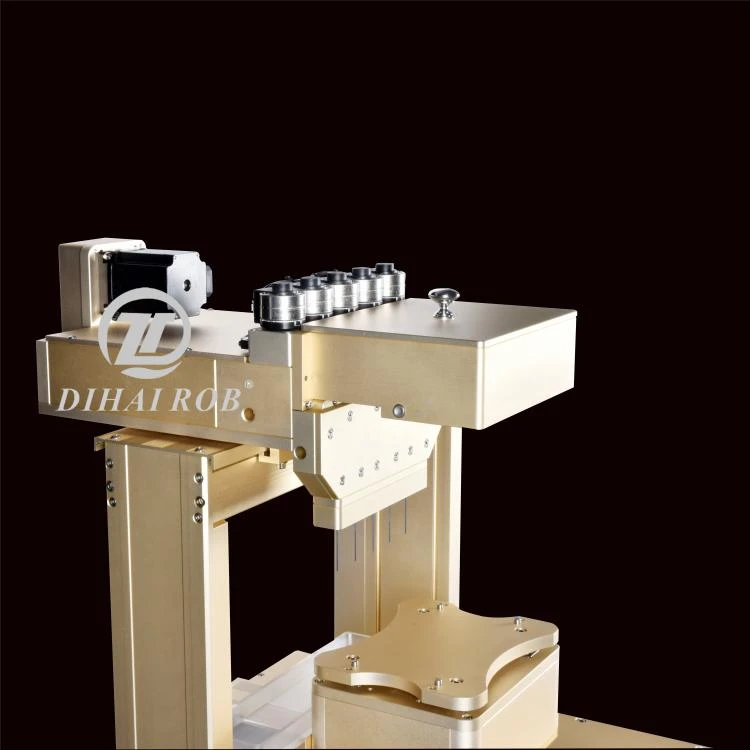

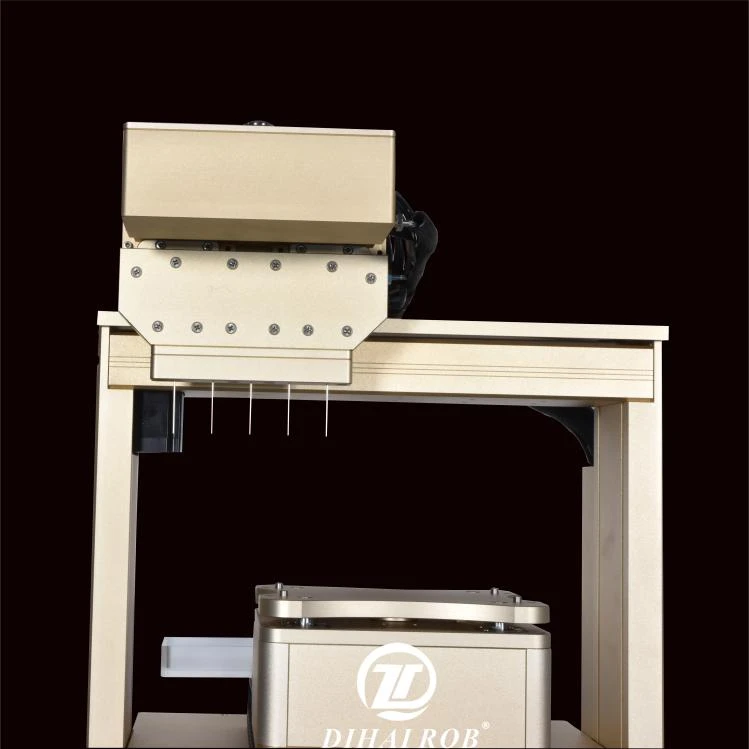

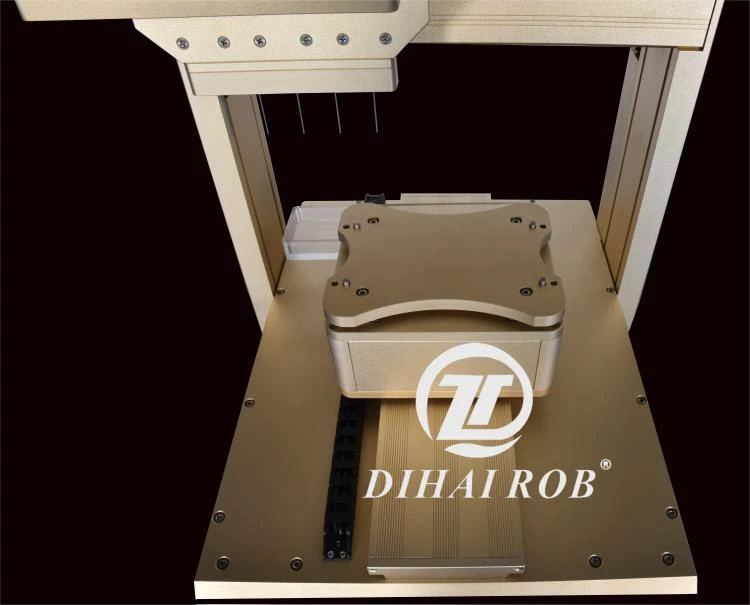

This equipment is used for the cigarette oil injected into the electronic fuming device. The mechanical device is composed of mechanical device and electrical control device. The mechanical device includes: electric oil injection component, Z-axis moving component, X-axis moving component and Y-axis moving component. The electronic fuming device can inject oil easily, conveniently, and accurately due to the coordinated operation of each component. The device's data is transmitted to the touch screen via temperature, positioning, and other sensors. The device can be controlled automatically, and the oil injection parameters are displayed in real time.
Main Performance Parameters
|
Project name |
Parameter |
Project name |
Parameter |
|
Input voltage (V) |
Single-phase AC110VAC 60Hz |
Liquid volume accuracy (rated stroke) |
Error ≤1% |
|
Input power capacity (power) |
0.8kW |
Liquid volume accuracy (repeatability) |
Error 0.3%～0.7% |
|
Temperature measurement range |
0~120℃ Accuracy 2% |
Maximum capacity of oil storage basin |
1000ml |
|
Equipment size |
740x400x760mm |
Piston rated driving force |
0.9N.m |
|
Equipment weight |
50kg |
Injection volume specification |
0.2-2.5mL |
|
Ambient temperature |
Temperature 0~150℃ |
Contact material |
Aluminum alloy, silica gel, stainless steel |
|
Suitable for |
0.5ml/1ml/2ml/5ml/10ml filling mahine | ||
| Applicable Industries | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company | ||
| Advantage | Easy to Operate,High-accuracy,High Safety Level,Automatic,Good For Thick oil | ||
| Drive mode | Stepper motor + rail drive(no air compressor) | ||
| Interface control | Position adjustment, Filling amount adjustment, Filling speed adjustment, program selection | ||
| Program capacity | Specifically based on PLC storage capacity | ||

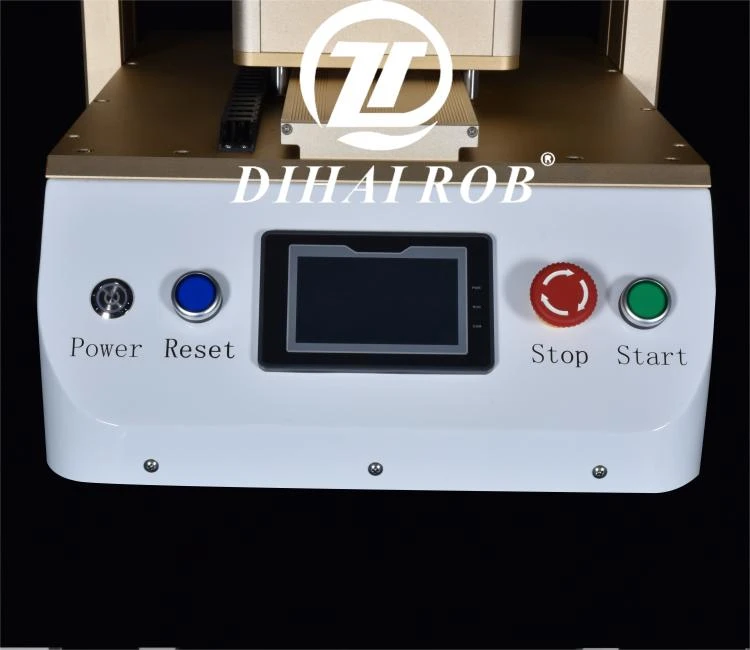

| Panel control | Touch screen, operation button, emergency stop | ||
|
Panel control |
PLC Touch screen, operation button | ||
|
Keywords |
liquid filling machine manufacturer | ||
|
Application |
Filling Preheat Thick Oil Honey Liquid | ||
|
Key Selling Points |
High Productivity, High Precise, Suits For Super Thick Oil | ||
Lead time
| Quantity (sets) | 1 - 1 | 2 - 5 | 6 - 10 | > 10 |
| Lead time (days) | 5 | 7 | 10 | To be negotiated |
Customization
Customized logo Customized packaging Graphic customization
Min. order: 1 Min. order: 1 Min. order: 1
FAQ
A1: Yes, it suits for thick oil with high accuracy filling injector, Especially design for thick oil.
Q2: Can the machine heat oil?
A2: Yes, Our filling machine has heating function, at most heat 150 celsius, to make oil flow and keep oil warm.
Q3: What kind of products can machine fill?
A3: Machine can fill small bottle, glass jar, syringes, plastic jars etc. We will send different spec of needles to match your products.
Q4: How long can it ship out?
A4: Ship out in 48 hours!
Q5: Is OEM/ODM available?
A5: Yes, it's available. We can OEM your company name in the filling system, and your brand logo on the machine.
Why Choose Us
1.Customize your logo, design your packaging, labelling etc;2, Function design, redesign the products from the
appearance,function and inner strucure.
Quality Assurance:
1.Strictly quality control system,we have IQC, IPQC, FQC,OQC etc. To ensure the best quality;
2. Products have passed CE RoHS ASTM certifications to meet the high standards of the local market.
Fast Delivery:
1.Samples order could be shipped in 3-5 days;
2.Bulk order will be shipped in 10-15 days;
Outstanding Service:
1.Excellent Pre-sale,in-sale and after-sale service;
2.We offer 24 hour online service, fast response;
3.All products with life-time sales or technique support.
why choose us
There are several compelling reasons to choose Dongguan Dihai Automation Intelligent Equipment Co., Ltd
why choose our products
Our team participates in exhibitions around the world each year, showcasing our innovative products and connecting with industry leaders and potential partners globally. These events provide us with valuable opportunities to stay updated on market trends, exchange insights, and strengthen our brand presence. By engaging in diverse markets and networking with clients and collaborators, we continue to expand our reach and influence across the international landscape.
Challenge: Fill And Press Your 3ml/5ml Pods 100pcs In 3 Minutes Or Less!!
A. Heating system and convenient thick oil setting.
B. Super large capacity oil basin for 2L, could fill the large capacity tank of the CBD pod up to 5ml.
C. Easy to use and fill, saving you time.
D. Easy to change your pod type, allowing you to run multiple brands concurrently!
E. Pure electric drive type, no air compressor required.
Common Problem
Will you support on install machine when receive?
Yes, our sales rep will contact you for online support by video call, or voice call; paperwork instruction and video instruction will be also prepared well;
Do you have warranty on machines?
Yes, our machine have 12month warranty, 7*24 hours Online service, Life time technical support, welcome for any question;
When can I get machine if I place order?
Longwill filling machine can be shipped out in 24-72hours, and 5-7days delivery by DHL!
Is there any insurance which I pay for to guarantee I will get the right machine?
We are an onsite check supplier from Alibaba. Trade Assurance order provides quality protection, ontime shipment protection and 100% safe payment protection.
