CBD THC Filling Machine Oil Filling Machine

Model: DHF8P
Drive mode: pneumatic
Production speed: 200~300pcs/min
Advantages: Product type data storage function, temperature control system, touch screen operation.
Fully automatic infusion machine, 100 pcs per infusion
Send Inquiry
Product Introduction

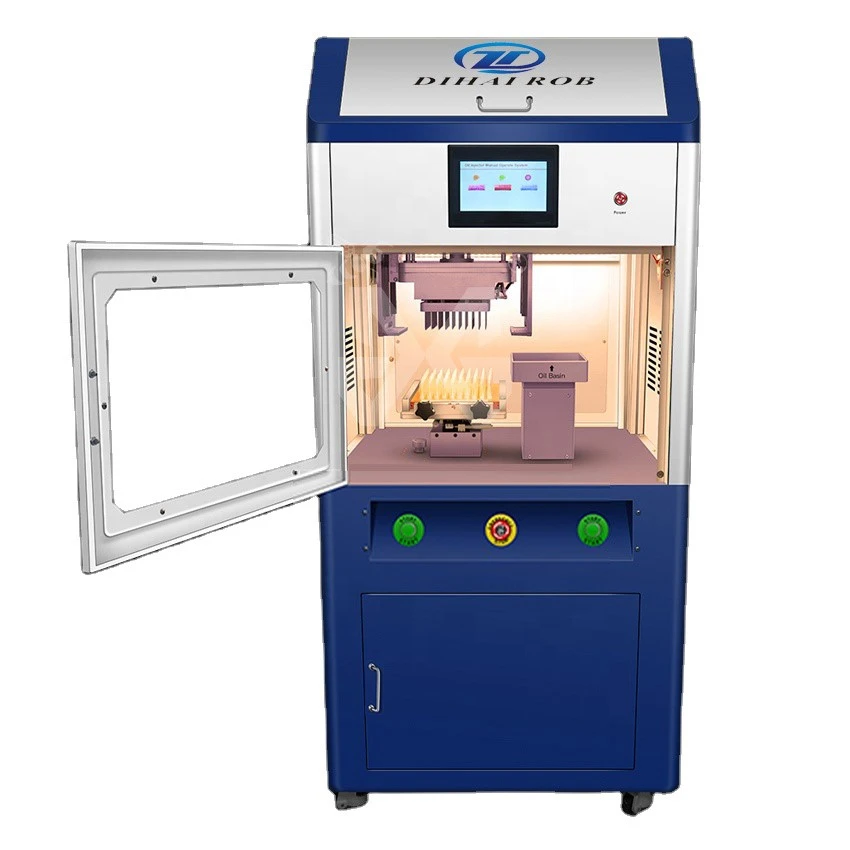

product-850-850

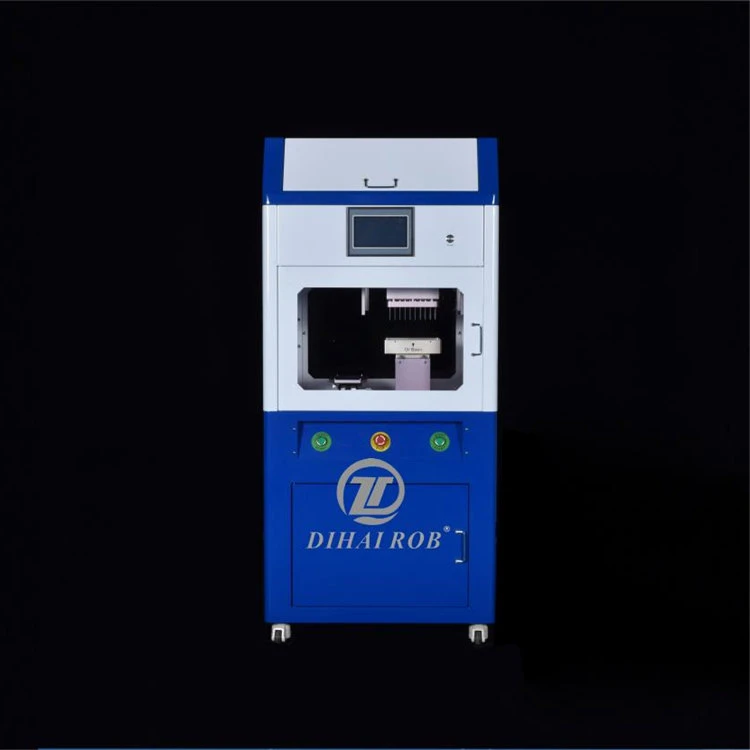

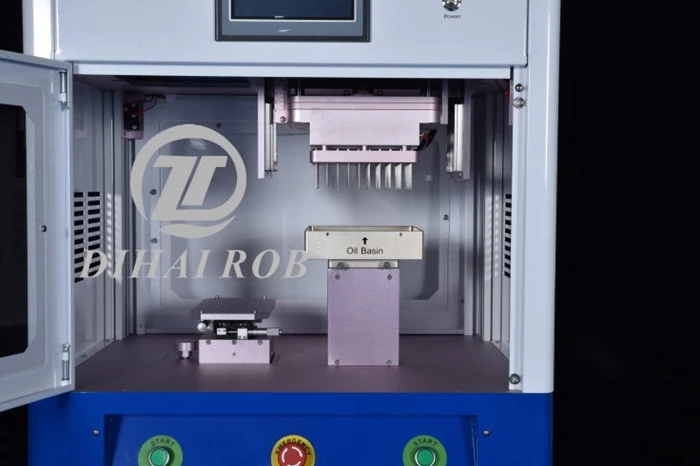

CBD THC Filling Machine Oil Filling Machine



Introducing the Automated Cartridge&Disposable filling machine. Machine arrives "Ready-to-Run", it is pre-assembled and pre-tested from our factory. It will fill the newest of cartridges including stainless steel/glass or the ceramic /plastic variety.



Specification



NAME

Parameters

Operating Voltage

AC110VAC 60Hz

Rated Power

1.5kW

Temperature range

0~100℃ ±1%

Product Dimensions (MM)

710x510x1550

Item Weight

120kg

Operating Air pressure

0.5~0.8MPa

Drive

Pneumatic

Length range of Cartridge

0~120mm



100 pieces/time filling machine

Attachment List

Tool kit

4 pallets (2 types allowed)

Fuse and 100 replacement pins, 2 silicon pads

Warranty: 2 years warranty for the machine and its parts

product-400-400



product-700-466
product-700-466
product-700-466
product-700-466
product-700-800
product-700-800

product-1200-1111

product-1380-808

product-1080-1440

Details



CBD THC Filling Machine Oil Filling Machine can fill many different typer of disposables to the thickest of oils. The Dual Heat Injection system makes it easy to load the liquids into the device. Up to 300 cartridge or disposable Fills per minute. Fill range 0.1ml-3ml.



Installation Site Requirements

1. In order to stably exert the performance of the equipment, the temperature should be 15~120 ℃, and the relative humidity should not be greater than 85%;

2. Remember that the ambient temperature at the installation site changes sharply;

3. It should be installed on a horizontal ground, without direct sunlight, with good ventilation, and in a place with little dust.



Mobile Loading and Unloading of Equipment



1. Please use a lift to lift the wooden box of packaging equipment and keep the equipment level when entering the production workshop.

2. After the equipment enters the production workshop, the wooden box is packaged and erected according to the instructions on the wooden box, and then the equipment is unpacked and unloaded.

3. Check whether the equipment surface is damaged by bumps and other damages.
