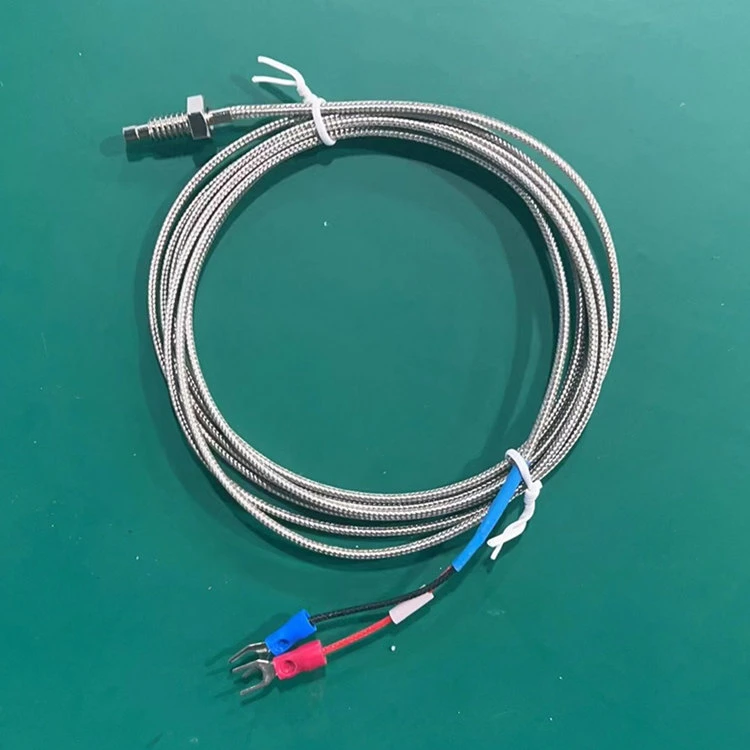

Thermocouple

The definition, function, purpose, and advantages of thermocouples in electronic cigarette equipment accessories

As a new type of electronic product, electronic cigarettes involve a large number of electronic components in their accessories due to their special working principles. One of the most important components is the thermocouple. This article will provide a detailed explanation of the definition, function, purpose, and advantages of thermocouples, and also introduce thermocouples of different specifications and sizes.

Thermocouples are components used to measure temperature, which are used to convert temperature into electrical signals. A thermocouple is composed of two different types of metal wires, which are connected together to form a circular structure. The section near the connection is used to sense temperature, which is called the "hot end" and the other end is connected to the instrument end, which is called the "cold end". When the temperature of the hot end changes, the electrons of two metal conductors are excited by heat, and electrons flow from the high temperature end to the low temperature end. This generates a voltage difference, which is the size of the temperature signal.

Thermocouples are commonly used to measure temperature in high-temperature environments, and they are widely used and cost-effective. Thermocouples can withstand high temperatures, wear resistance, and are easy to manufacture and operate, making them an ideal choice for measuring high temperatures.

Thermocouples are widely used in various industries, such as steel, non-ferrous metals, chemical industry, instrumentation, mechanical processing, and so on. Especially in the electronic cigarette industry, thermocouples are widely used in the manufacturing process of electronic cigarette equipment accessories due to the need to measure temperature in the heating components of electronic cigarette equipment.

In electronic cigarette equipment, it is mainly used for temperature control of heating devices to ensure that the electronic cigarette equipment can continuously heat for a long time, while avoiding overheating, short circuits or explosions. In addition, the output voltage and resistance value of electronic cigarettes can also be measured.

1. High accuracy: Compared to other temperature measurement techniques, thermocouples have higher measurement accuracy.

2. Good waterproofing: The casing of thermocouples is usually made of waterproof materials, which can be used under certain waterproof conditions.

3. Strong anti-interference ability: Thermocouples rely on electrical signals for temperature measurement, and their anti-interference ability is significant.

4. Use in high-temperature environments: In high-temperature environments, thermocouples have a long service life and are not prone to errors.

The specifications and dimensions of thermocouples vary depending on their different usage scenarios, temperature ranges, and other requirements. Here are some common thermocouple specifications and sizes:

1. Diameter 1 (mm) thermocouple: It is suitable for measuring some smaller electronic components and small circuit boards. This type of thermocouple has high sensitivity during the measurement process.

2. Diameter 2 (m) thermocouple: It is suitable for measuring at moderate temperatures. This type of thermocouple is widely used in industries such as automotive manufacturing, mechanical manufacturing, aerospace, etc.

3. Diameter 3 (mm) thermocouple: It is suitable for industrial production fields such as thermal power, electric power, and petroleum

4. Diameter 4 (mm) thermocouple: It is suitable for systems that require long-term operation such as larger electronic components, circuit boards, and electronic motors for temperature measurement.

A thermocouple is a component that measures temperature by converting it into an electrical signal. It has now been widely used in the manufacturing of electronic cigarette equipment accessories, for measuring equipment parameters such as temperature, output voltage, resistance, etc. The advantages of thermocouples lie in their high accuracy, good waterproofing, and strong anti-interference ability. At the same time, thermocouples of different specifications and sizes have their own special application scenarios, and selection needs to be made according to needs.
