Solid-State Relay

Electronic cigarette is a new type of electronic product that uses an electronic heater to convert liquid cigarette oil into a breathable gas and is widely used. However, the design of electronic cigarettes cannot be separated from the application of various electronic components. Among them, solid-state relays play a very important role as important accessories. This article will introduce the definition, function, purpose, and advantages of solid-state relays, including various specifications and sizes.

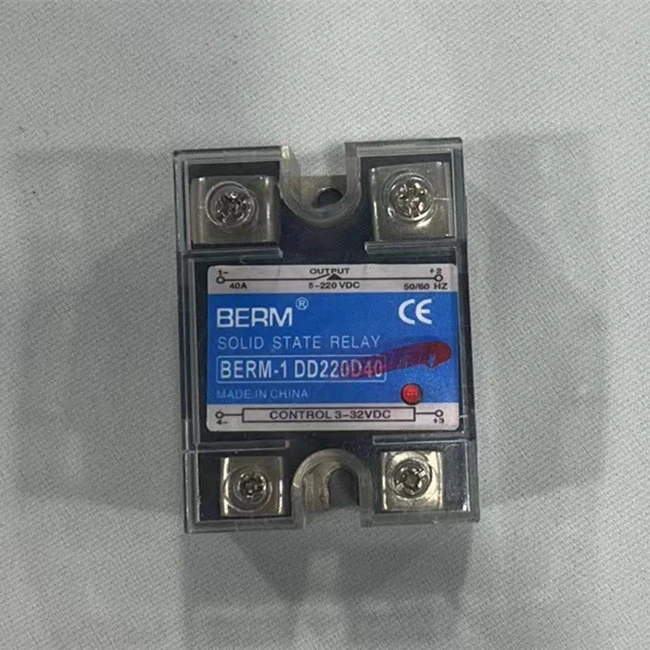

Solid State Relay (SSR) is a power switch and control component based on semiconductor devices. The SSR is internally controlled by a semiconductor transistor (such as transistor, transistor, E-MOS, IGBT, etc.) to control the input relay circuit, and the generated control current directly controls the power switch of the output circuit. It can replace traditional mechanical relays, making the design of electronic cigarettes more integrated and reliable.

The main function of solid-state relays is to control AC load switches, such as heating coils and various thermal appliances. At the same time, SSR converts the input signal into control current through a semiconductor driving circuit, and controls the load by applying voltage to the output end. Simply put, a solid-state relay is like a switch that controls the magnitude of the current and thus the state of the circuit switch.

Solid state relays have a wide range of applications. In the e-cigarette industry, it can be used to control the heater of e-cigarettes. At the same time, SSR can be directly applied in AC circuit control, replacing traditional mechanical relays, such as household air conditioners, electric water heaters, ovens, water heaters, etc.

Compared to traditional mechanical relays, solid-state relays have the following advantages:

1. Higher reliability: The structure is relatively simple, and due to the lack of mechanical hinges and other components, the lifespan is longer than that of mechanical relays.

2. Faster response speed: Solid state relays are controlled by semiconductor devices, with a maximum rated speed of hundreds of HZ and a response speed several times faster than traditional relays.

3. Wider adaptability: Solid state relays are suitable for DC or AC environments as low as 12V or 120mA, providing different solutions for industries such as quartz tubes, electrophoresis, electronic electroplating, and electronic cigarettes.

4. Less mechanical noise: Solid state relays do not have mechanical hinge components, and do not emit the common sound of mechanical relays such as clicking.

The specifications and dimensions of solid-state relays vary depending on their application range and circuit environment, and the power of SSRs needs to be determined based on the size of the load.

The commonly used specifications and parameters of solid-state relays include input control voltage, control current range, maximum load voltage, and maximum load current. At the same time, factors such as appearance size, installation method, and operable temperature range need to be considered.

Generally speaking, solid-state relays have a smaller size and can be selected according to different usage requirements, such as 4 ports, 6 ports, 8 ports, 16 ports, 24 ports, etc.



In short, solid-state relays are indispensable accessories in the electronic cigarette industry, with high reliability, fast response speed, and wide adaptability. In order to better utilize the effectiveness of solid-state relays, it is necessary to select appropriate specifications and sizes of SSRs based on different circuit environments and usage scenarios, in order to make production in the electronic cigarette industry safer and more stable.
