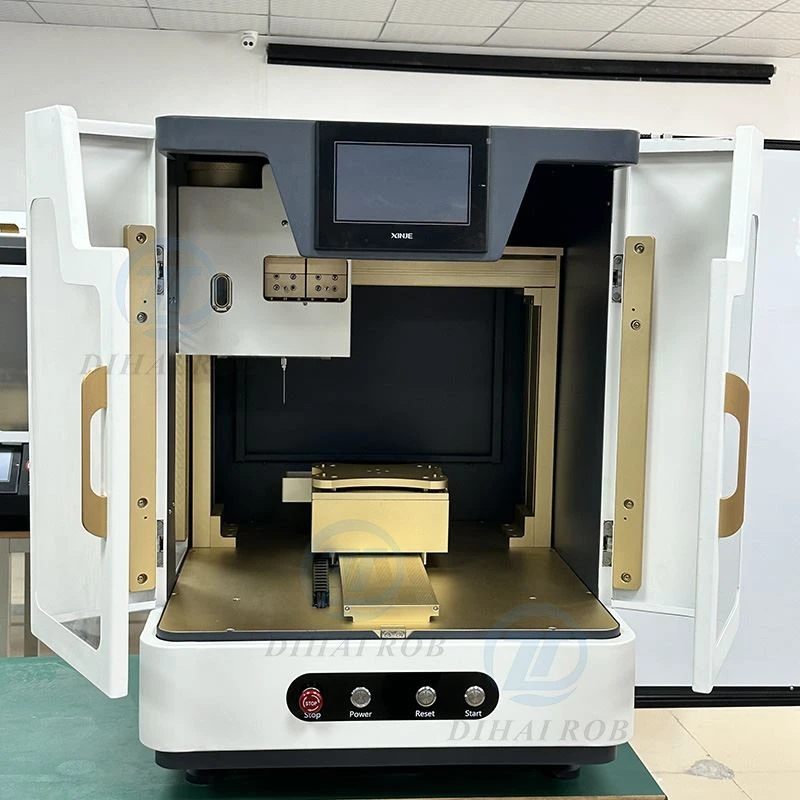

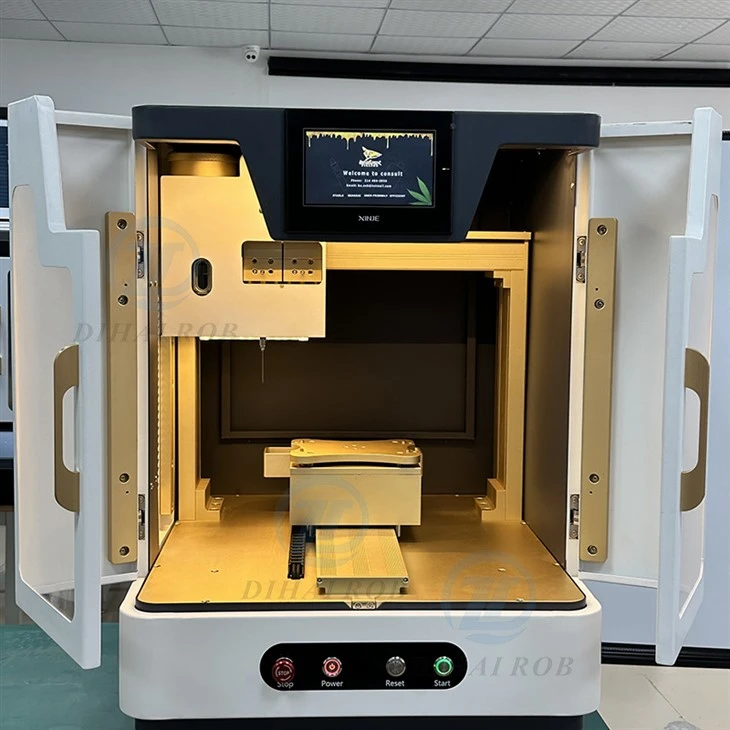

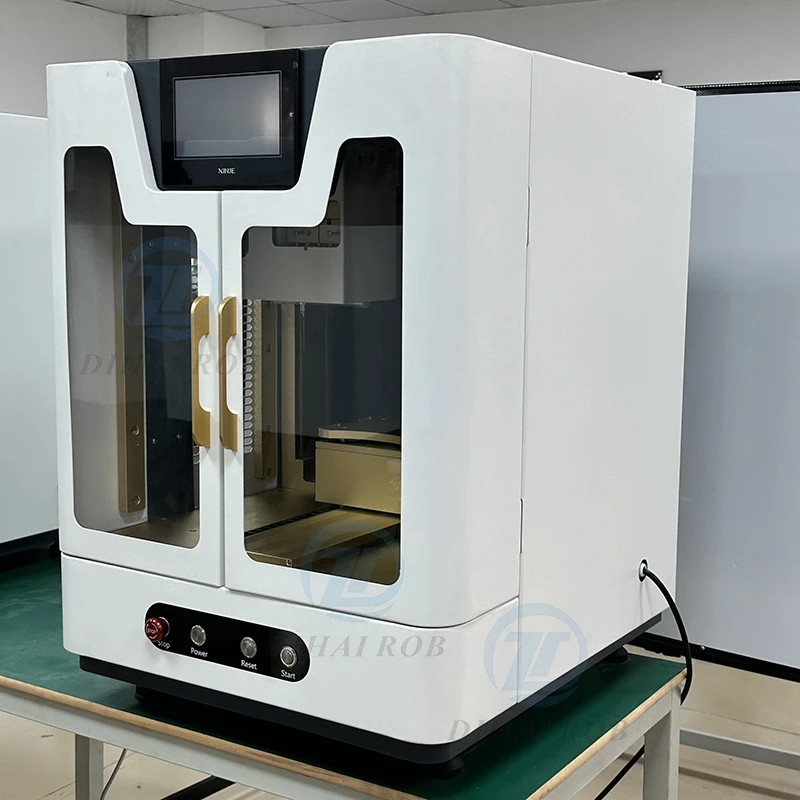

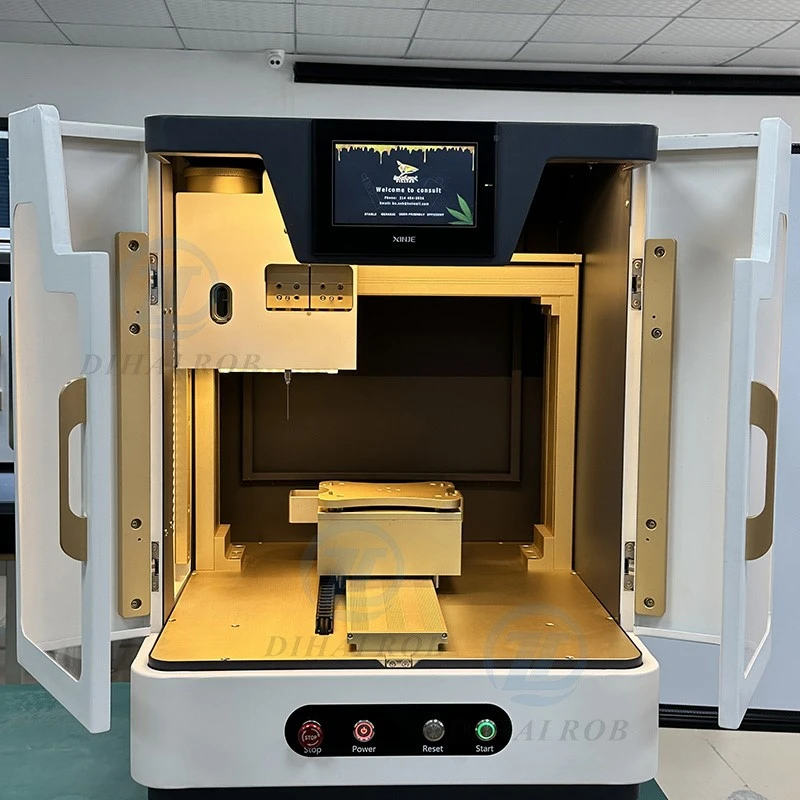

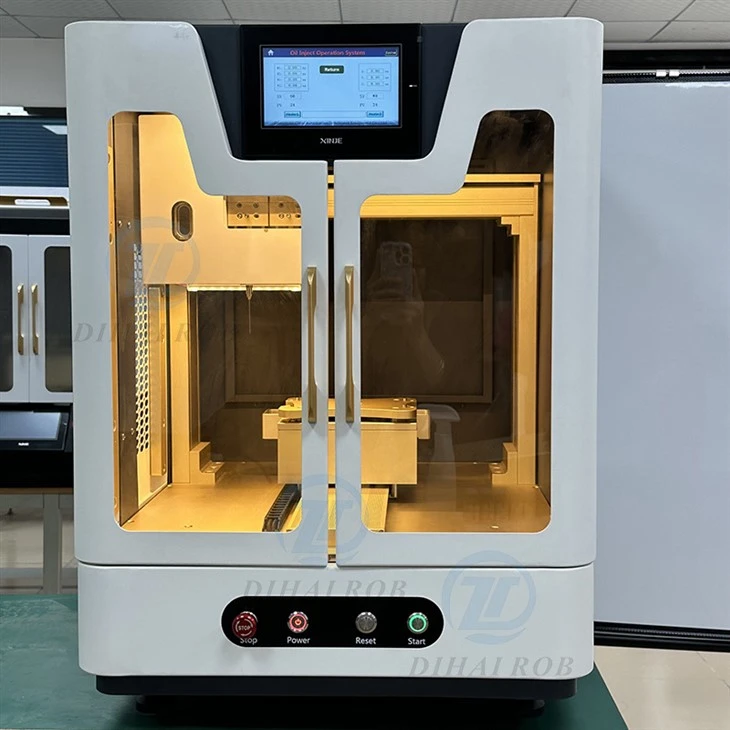

Single - Needle Electric Oil Injection Machine Desktop Needle Oil Injection Machine CBD Oil Filling Machine Liquid And Thick Oil Cartridges, Pods, Bottle Filling Machine Equipment

To ensure stable performance of the equipment, a location with a temperature of 15-120 ℃ and a relative humidity of no more than 85% should be selected;
The environmental temperature at the installation site should not change rapidly;
It should be installed on a level ground, in a place without direct sunlight, with good ventilation and less dust;

 Mobile loading and unloading of equipment
 When the equipment enters the production workshop, please use a lift to lift the equipment and keep it level to ensure that the equipment is level
 Remove the wooden packaging box before the equipment enters the production workshop

 Mechanical aspects
(1) When operating the equipment, be sure to refer to the operation manual.
(2) Wear appropriate work clothes. Those who operate or maintain equipment are not allowed to wear ties, necklaces, or loose clothing, and must wear necessary protective devices.
(3) The device needs to be heated, please do not touch it with your hands to avoid burns.
(4) Before operating the equipment, consider the steps of the operation.
(5) Before demonstrating any operation near the device, all active components must be stopped first

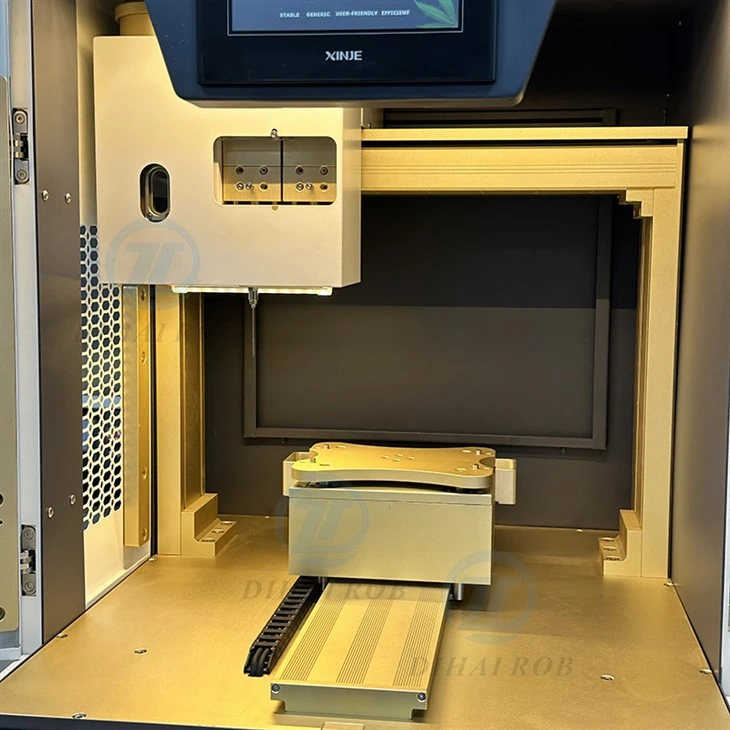

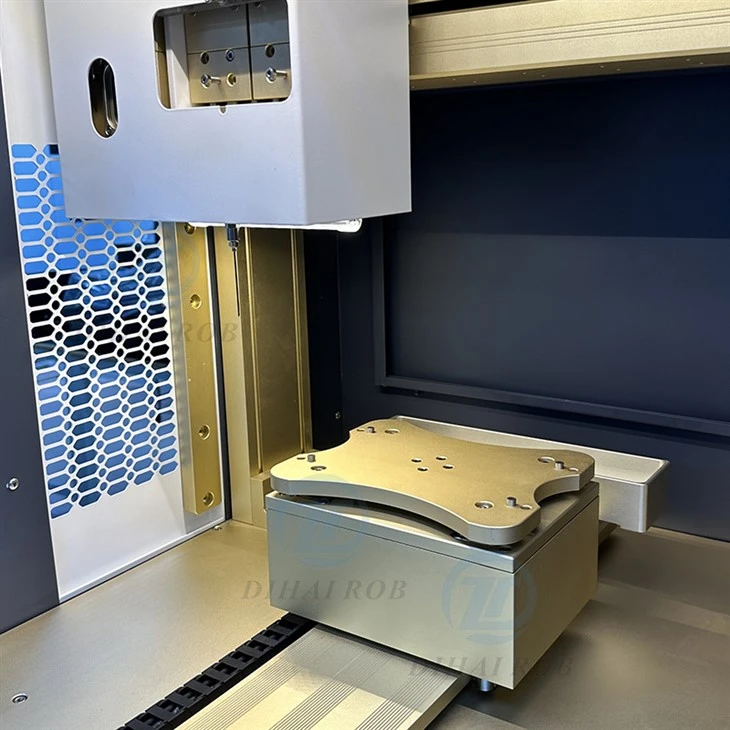

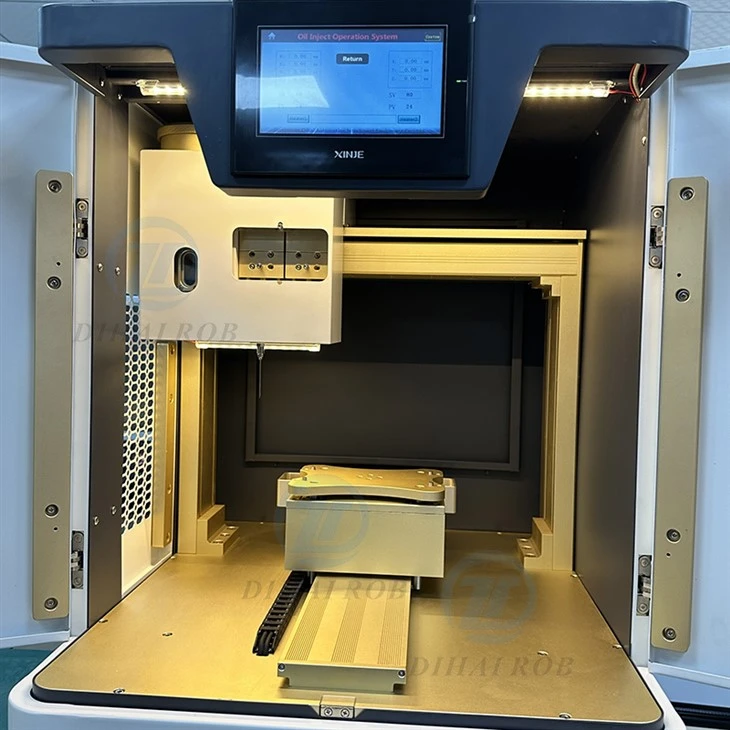

Move the X, Y, and Z axes to the oil injection position of the first atomizer. When "save X1,Y1" is displayed, click the "Enter" key to save the current starting coordinates of the X/Y axes.
Click the toggle key again. When "save Z1" appears, click the "Enter" key to save the highest lifting point Z1 for oil injection on the Z - axis.
Operate the Z - axis to move downward. When observing that the needle reaches the top of the atomizer and there is no collision during left - right movement, click the toggle key. When "save Z2" appears, click the "Enter" key to save the height Z2 of the Z - axis near the top of the atomizer.
Continue to operate the Z - axis to move downward. Observe the oil injection depth when the needle is inserted into the atomizer. Click the toggle key. When "save Z3" appears, click the "Enter" key to save the oil injection depth Z3 of the Z - axis. Then the position parameter setting is completed, as shown in the right - hand figure.
