0.5/1ml Pencil refill machine High Quality High Efficiency Automatic Filling Machine China Factory
Product Display
0.5/1ml Pencil refill machine High Quality High Efficiency Automatic Filling Machine China Factory
Electric equipment known as electronic cigarette refueling machines are capable of correctly, swiftly, and conveniently charging a number of electronic cigarettes at once.
Main Structure
Consisting mostly of a rack, a workbench, and an electronic control system. Touch screen displays are used in the electrical component. (The equipment is shipped in its whole; the buyer is not obligated to install it.)
Working Principle
This mechanism is used to pump cigarette oil into the electronic fuming device. Its components include a rack, an operating table, and an electrical control device. The apparatus's mechanical components comprise sliding, lifting, and oil injection components. Because of the coordinated operation of various sections, the electronic smoker may inject oil simply, conveniently, and precisely. The data from the equipment is delivered to the touch screen via temperature, position, and other sensors. The device may be controlled automatically, and the oil injection parameters are shown and saved in real time.
Main Performance Parameters
|
Entry Name |
Parameter |
|
Input voltage (V) |
Single-phase AC110VAC 60Hz |
|
Filling Material |
Beer, Other, Milk, Water, Oil, Juice, Powder |
|
Input power capacity (power) |
1200W |
|
Machinery Capacity |
1500-1800Pcs Per Hour |
|
Air pressure measuring range |
0~5kPa Precision 2% |
|
420x320x320 |
420x320x320mm |
|
Equipment weight |
18kg |
|
Temperature measurement range |
Temperature 0~120℃ |
|
Filling range |
0.5~5ml |
|
Filling Accuracy |
±0.005ml |
|
Maximum capacity of oil cup |
800ml |
|
Suitable for |
0.5ml/1ml/2ml/5ml/10ml thread |
|
Packaging Material |
Wood |
|
Applicable Industries |
Manufacturing Plant, Food & Beverage Factory, Retail, Energy & Mining, Food & Beverage Shops, Other |
|
Keywords |
liquid filling machine manufacturer |
|
Oil temperature |
adjustable |
| Advantage | Easy to Operate,High-accuracy,High Safety Level,Automatic,Good For Thick oil |
| Drive mode | Stepper motor + rail drive(no air compressor) |
| Panel control | Touch screen, operation button, emergency stop |
| Interface control | Position adjustment, Filling amount adjustment, Filling speed adjustment, program selection |
| Program capacity | Specifically based on PLC storage capacity |
Customization
Customized logo Customized packaging Graphic customization
Min. order: 1 Min. order: 1 Min. order: 1

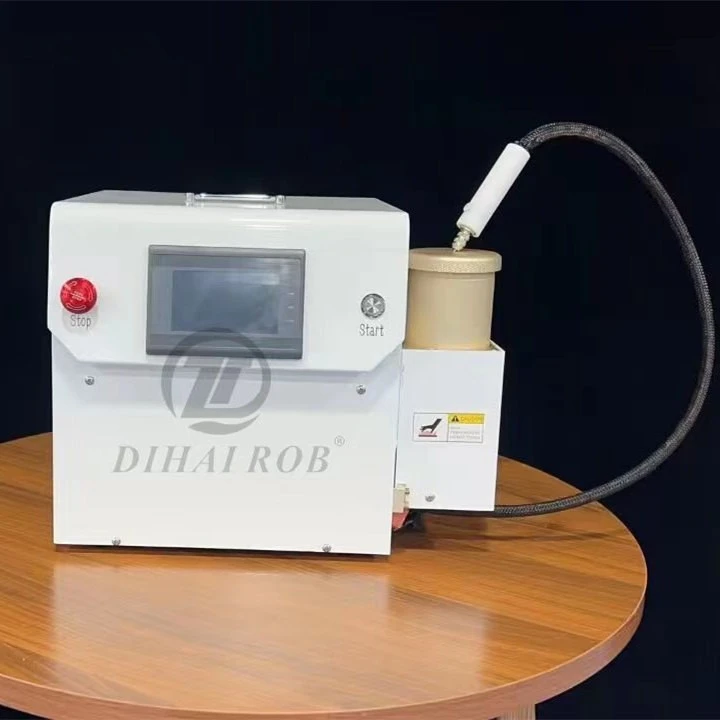

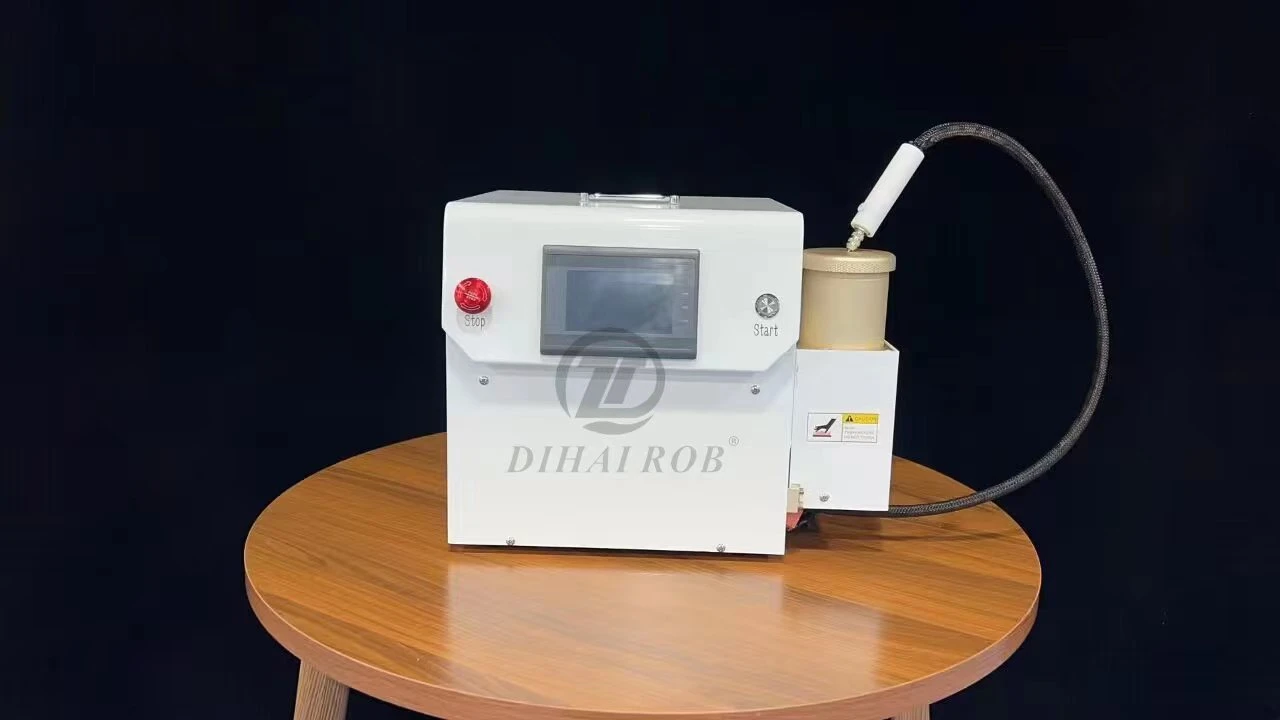

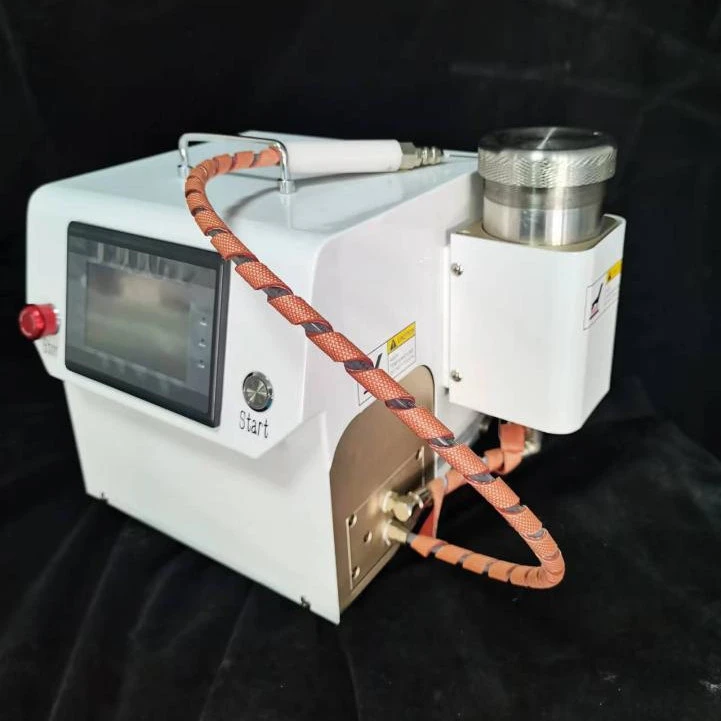

Function Description

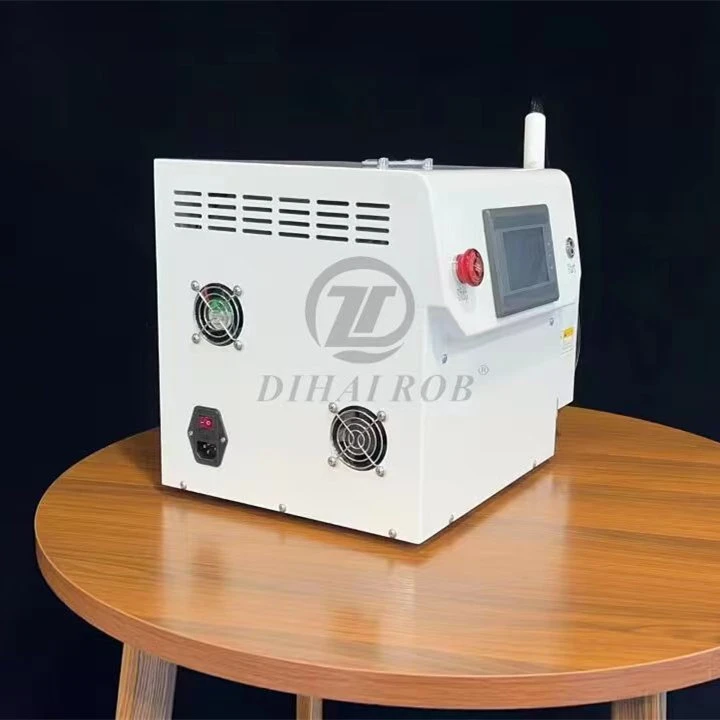

① power socket and switch: 110 60Hz power input interface with power switch and built-in fuse;
② Oil filling pump: used to fill the oil;
③Connect the foot switch to the socket;
④ Foot start switch: This switch is used to start the engine.
⑤ Heating belt connector: connect the heating belt;
⑥ Stop switch: serves as a stop action switch;
⑦ Touch screen: displays the device's many parameter functions.
⑧ Start button: It serves as a start button (similar to a foot switch), and the light illuminates to indicate that oil is being injected.
⑨ Oil inlet pipe: This line allows smoky oil to flow from the oil cup into the pump's interior.
⑩ Oil outlet pipe and heat tracing belt: Smoke oil exits the pump through this pipe, and the heat tracing belt is attached to it.
⑪Oil cup having a capacity of 500ml for storing tobacco oil;
⑫Oiling pen: a pen used to fill tobacco oil.
our Partners
We have worked with many of the world's leading brands,and almost all of our co-operators have been satisfied with our products and services,and have continued their co-operation for many years. We are looking forward to your enquiry,let's cooperate and win together!
We trusted by
FAQ
Q1: Is the machine for thick oil?
Q2: Can the machine heat oil?
A2: Yes, Our filling machine has heating function, at most heat 150 celsius, to make oil flow and keep oil warm.
Q3: What kind of products can machine fill?
A3: Machine can fill small bottle, glass jar, syringes, plastic jars etc. We will send different spec of needles to match your products.
Q4: How long can it ship out?
A4: Ship out in 48 hours!
Q5: Is OEM/ODM available?
A5: Yes, it's available. We can OEM your company name in the filling system, and your brand logo on the machine.
