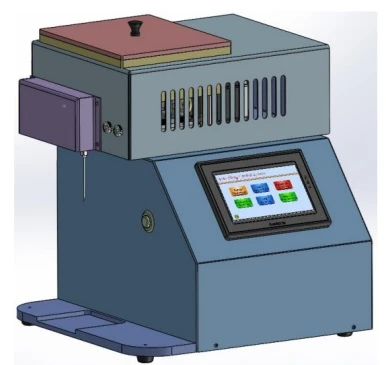

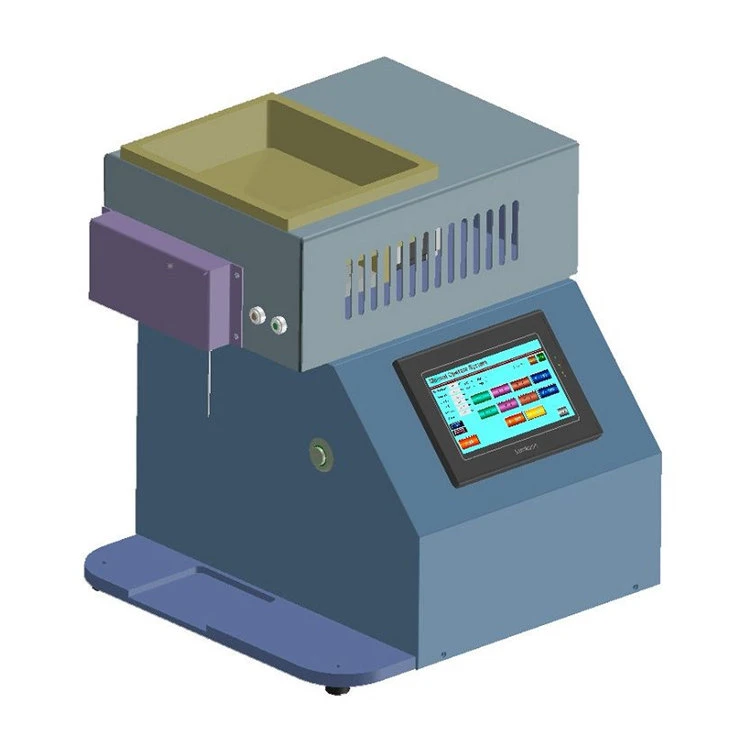

CBD Mini Electric Filling Machine
Summary
The electric electronic cigarette oiling machine is a kind of electric electronic cigarette oiling equipment that can oil a variety of electronic cigarettes quickly, conveniently and accurately at the same time.
Main Structure
It is mainly composed of mechanical devices and electrical control devices. The electrical part adopts touch screen display. (The equipment is shipped as a whole, without customer installation)
Principle
This equipment is used for the cigarette oil injected into the electronic fuming device. Through the upper and lower control devices, the equipment can be used in combination or separately. The coordinated operation of various components enables the electronic fuming device to inject smoke oil simply, conveniently and accurately, and transmit the equipment data to the touch screen through temperature, positioning and other sensors.
Main Performance Parameters
|
Project Name |
Parameter |
Project Name |
Parameter |
|
input voltage (V) |
Single-phase AC110AC60Hz |
Liquid volume accuracy (rated stroke) |
Error ≤ 1% |
|
Input Power capacity (power) |
800W |
Maximum capacity of oil storage basin |
Error 0.3%~0.7% |
|
Temperature measurement range |
0~120 ℃ Accuracy 2% |
Piston rated driving force |
800m |
|
Equipment size (MM) |
290X300X310 |
Injection capacity specification |
0.9Nm |
|
Equipment weight |
125kg |
Injection capacity specification |
0.2-2.5mL |
|
Ambient temperature |
0~150 ℃ |
Contact material |
Aluminum alloy, silica gel, stainless steel |
Maintenance
1. After each use of the equipment, please keep the inside and outside of the machine clean and free of stains.
2. This equipment is precision equipment. When handling, follow the prescribed handling methods and do not collide.
3. The power-on and power-off interval of the equipment must be guaranteed at least 1 minute.
4. If the equipment is not used for a long time, it should be powered on every other month.
5. Do not arbitrarily remove electrical components and equipment components to avoid damaging the equipment and affecting its performance.
6. The maintenance and repair of this equipment requires professional or trained personnel to operate it.
