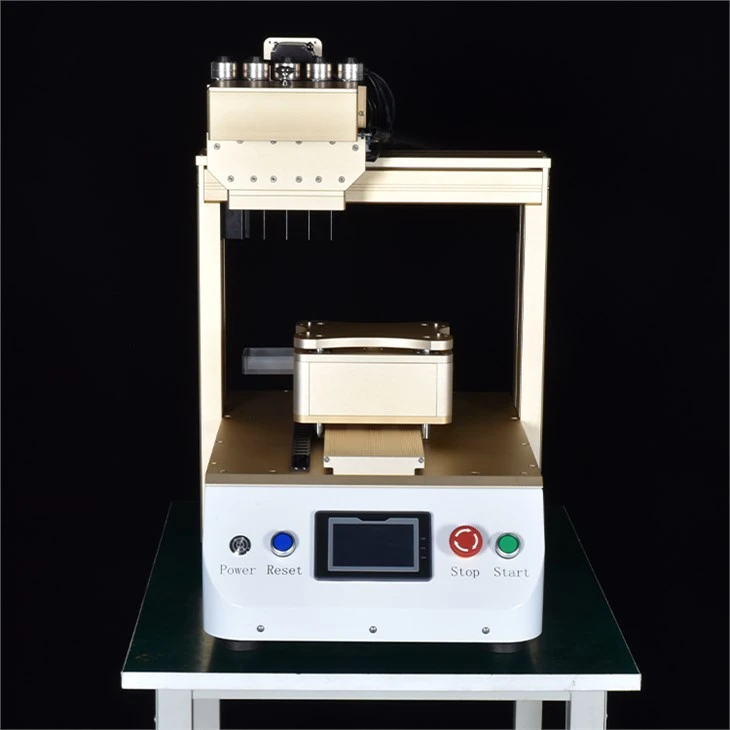

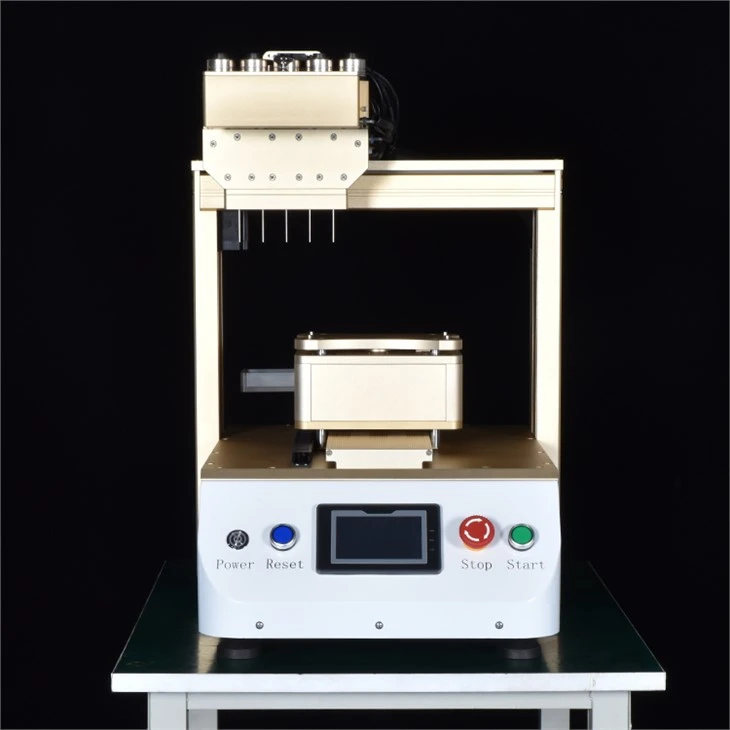

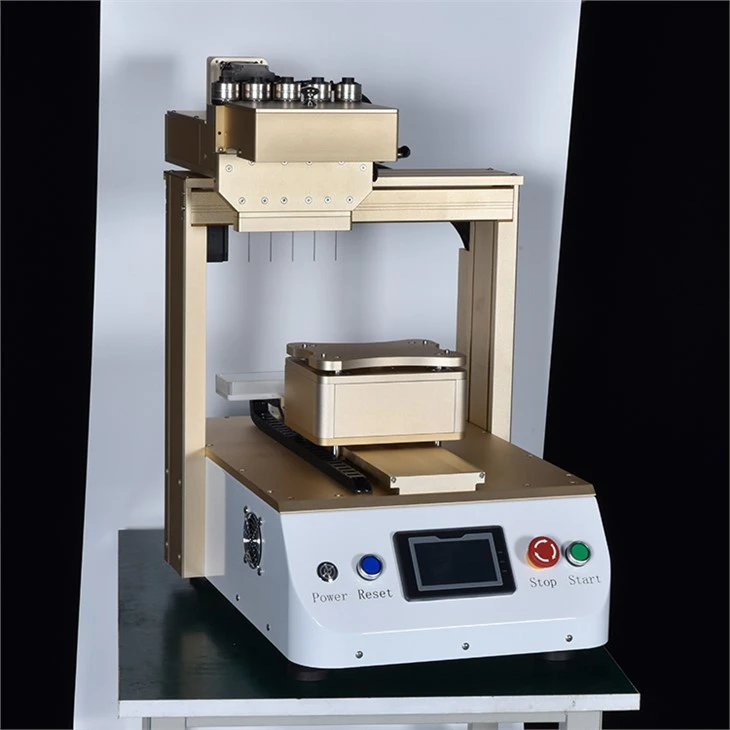

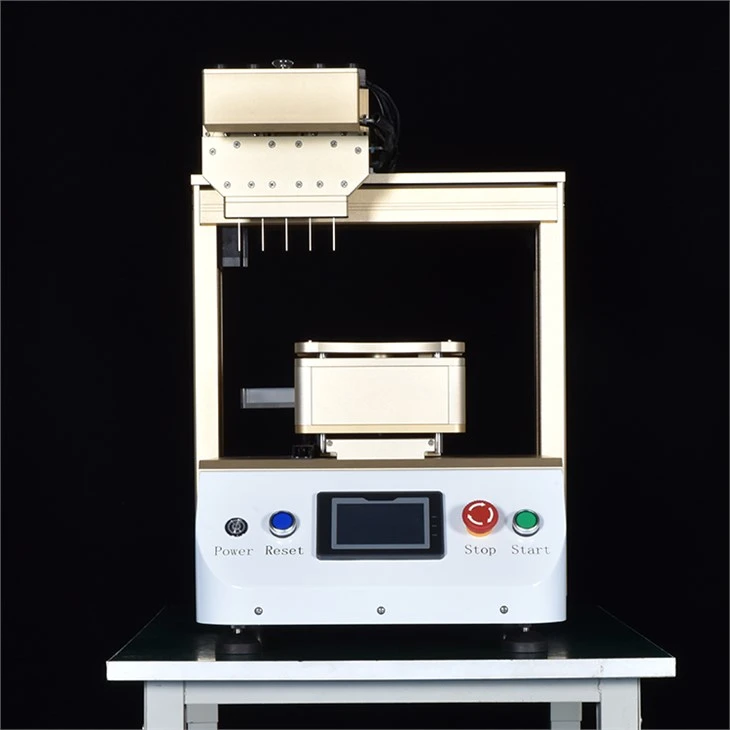

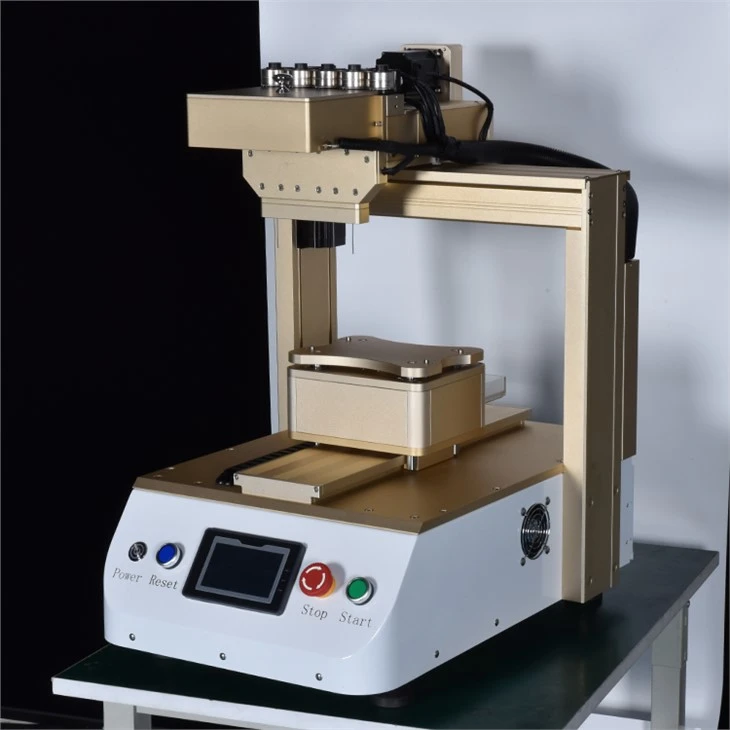

CBD 5 Needles Filling Machine
DiHai 5 Heads Pod Filling Machine Cartridge Oil Filling Machine with Thick Oil Heating
(CBD 5-Needle Filling Machine)
The electric electronic cigarette oiling machine is a kind of electric electronic cigarette oiling equipment that can oil a variety of electronic cigarettes quickly, conveniently and accurately at the same time.
Main Structure and Working Principle
a. Main structure

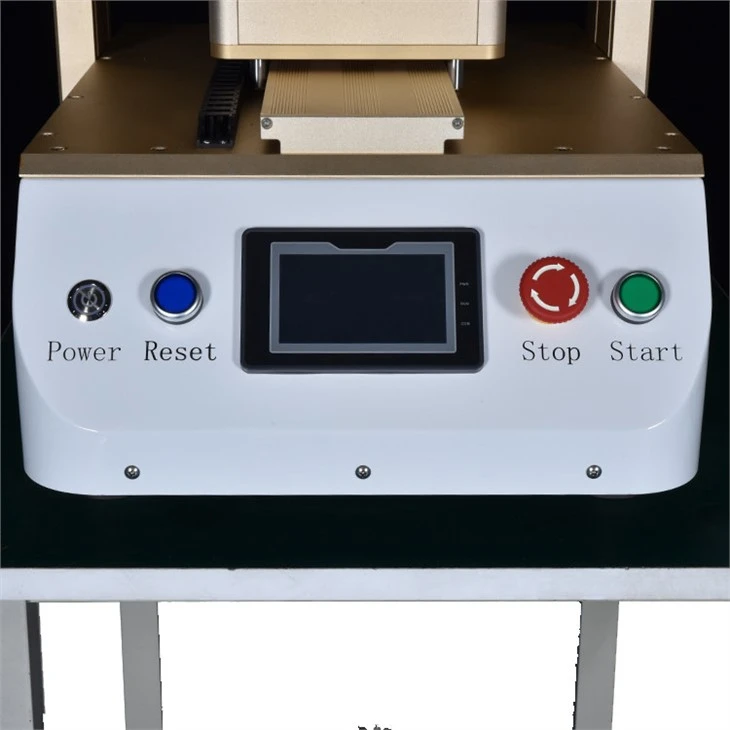

It is mainly composed of mechanical devices and electrical control devices. The electrical part adopts touch screen display. (The equipment is shipped as a whole, without customer installation)
b. Working principle

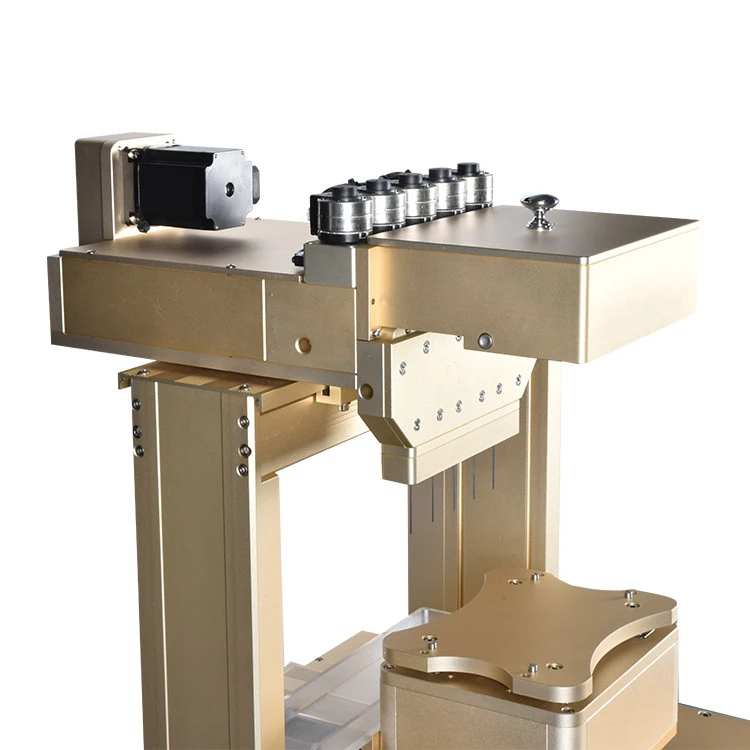

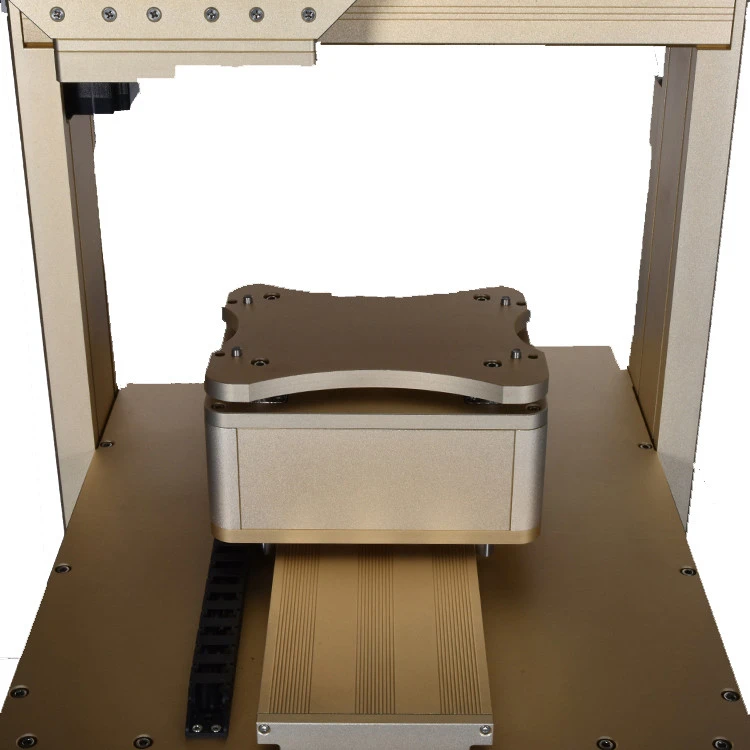

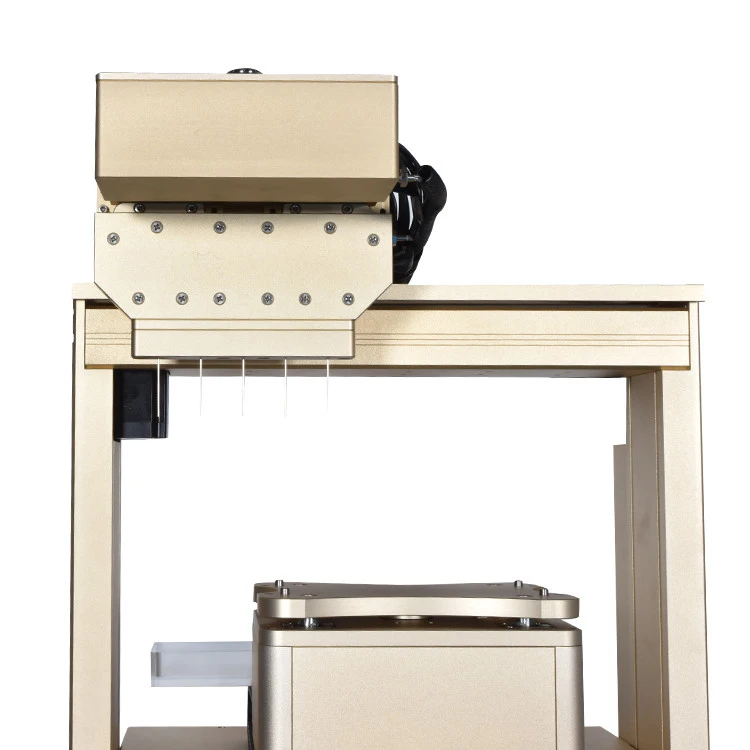

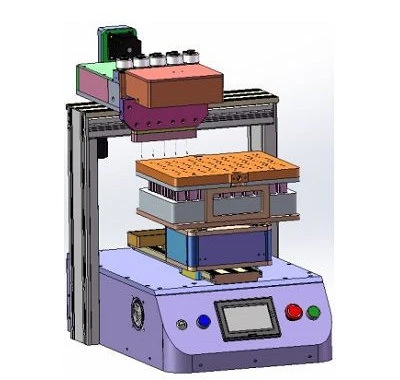

This equipment is used for the cigarette oil injected into the electronic fuming device. The mechanical device is composed of mechanical device and electrical control device. The mechanical device includes: electric oil injection component, Z-axis moving component, X-axis moving component and Y-axis moving component. The coordinated operation of each component enables the electronic fuming device to inject oil easily, conveniently and accurately. The data of the device is transmitted to the touch screen through temperature, positioning and other sensors. The device can be automatically controlled and the parameters of oil injection are automatically displayed in real time.
Main Performance Parameters
|
Project name |
Parameter |
Project name |
Parameter |
|
Input voltage (V) |
Single-phase AC110VAC 60Hz |
Liquid volume accuracy (rated stroke) |
Error ≤1% |
|
Input power capacity (power) |
0.8kW |
Liquid volume accuracy (repeatability) |
Error 0.3%～0.7% |
|
Temperature measurement range |
0~120℃ Accuracy 2% |
Maximum capacity of oil storage basin |
1000ml |
|

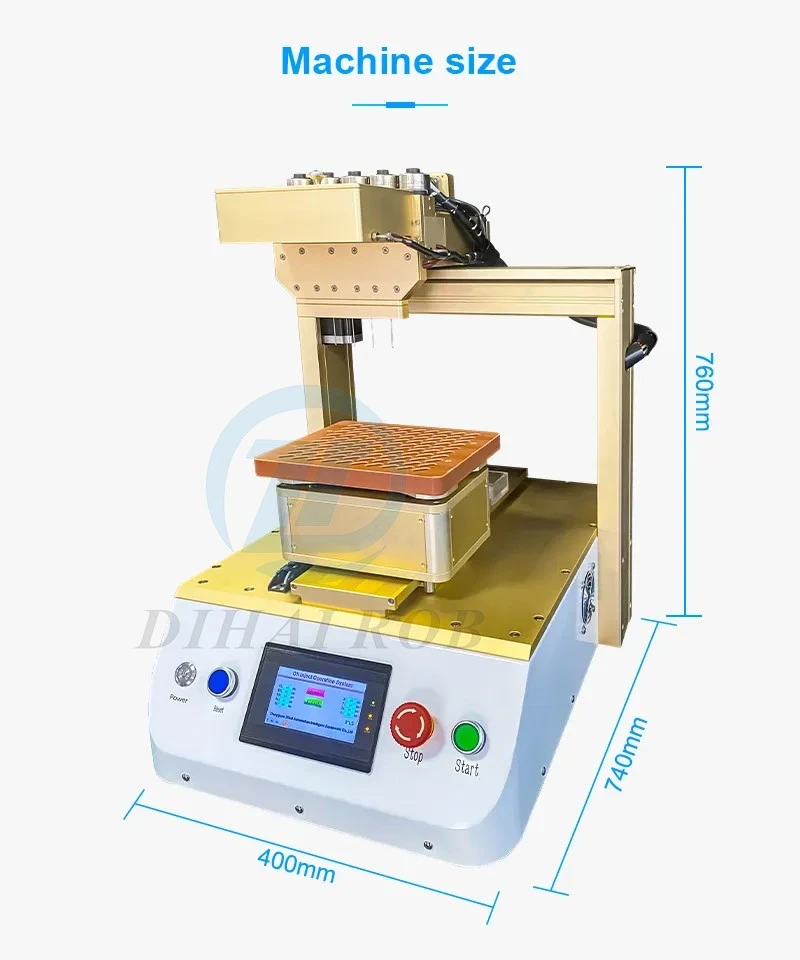

Equipment size |
740x400x760mm |
Piston rated driving force |
0.9N.m |
|
Equipment weight |
50kg |
Injection volume specification |
0.2-2.5mL |
|
Ambient temperature |
Temperature 0~150℃ |
Contact material |
Aluminum alloy, silica gel, stainless steel |
Challenge To Fill And Press Your 3ml/5ml Pods 100pcs Only Within 3 Minutes!!
A. Heating system and convenient setting for thick oils.

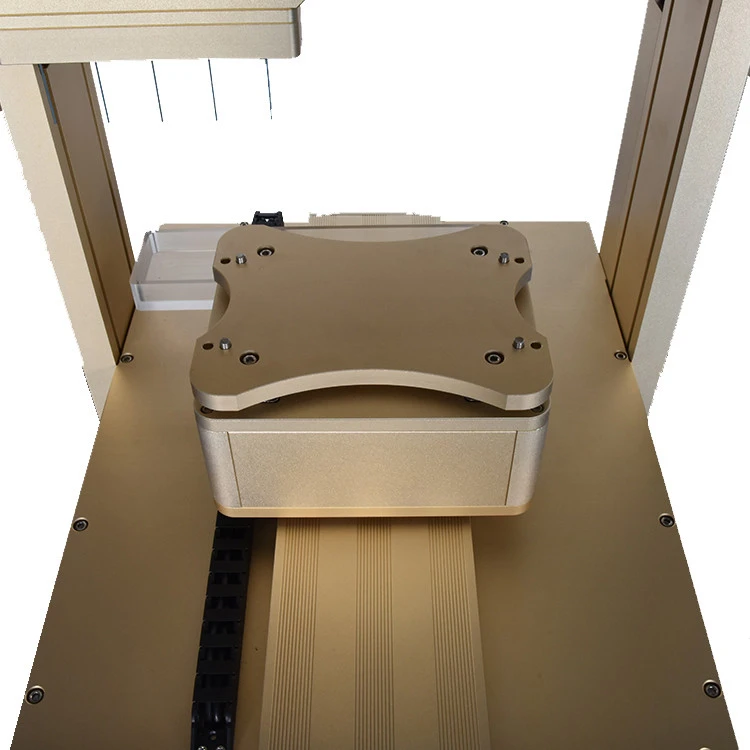

B. Super large capacity oil basin for 2L, could fill the big capacity of cbd pod' s tank up to 5ml.
C. Easy to operate and fill for saving your time.
D. Easy to change your pod type, support you to run more brands at the same time!
E. Pure electric drive type, no need the air compressor.
