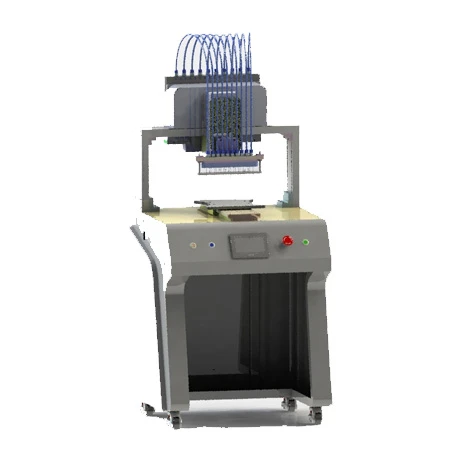

CBD 10 Needles Filling Machine
Overview
The electric electronic cigarette oiling machine relates to an electric electronic cigarette oiling device that can quickly, conveniently and accurately oil multiple electronic cigarettes simultaneously.
Main Structure and Working Principle
a. Main structure
It mainly consists of mechanical devices and electrical control devices. The electrical part adopts touch screen display. (This equipment is shipped assembled as a whole and does not require customer installation)
b. Working principle
This equipment is used for the injection of tobacco oil into electronic fumigators. Composed of a mechanical device and an electrical control device, the mechanical device includes an electric oiling component, a Z-axis moving component, and a Y-axis moving component. The coordinated operation of various components enables the electronic fuming device to inject tobacco oil easily, conveniently, and accurately. Data from the device is transmitted to a touch screen through sensors such as temperature and positioning, enabling the device to automatically control and automatically display various oiling parameters in real-time.
Main Performance Parameters
|
Project Name |
Parameter |
Project Name |
Parameter |
|
Input voltage (V) |
Single phase AC110VAC 60Hz |
Liquid volume accuracy (rated stroke) |
Error ≤ 1% |
|
Input power capacity (power) |
0.8kW |
Liquid volume accuracy (repeatability) |
Error 0.3%~0.7% |
|
Equipment size |
640x64x1300 mm |
Rated driving force of piston |
0.9N.m |
|
Equipment weight: |
75kg |
Injection volume specification |
0.5-10mL |
|
Ambient temperature: |
0~60 ℃ |
Contact material |
Aluminum alloy, silicone, PC |
Key Points for Operation
A. Before operation, please carefully check whether the power supply meets the specified voltage, whether the power supply has a grounding wire, whether the power cord is properly connected according to specifications, and whether electrical components have short circuits. Carefully inspect each pipeline system for leakage and each pipeline interface for looseness; Operation can only be carried out if everything is normal.
Before operating the device, demonstrate the steps of operation.
Do not open the safety door to operate the equipment to avoid accidents.
B. The incoming line end of the equipment power supply should be connected to an air switch with leakage protection in order to immediately cut off the power supply in an emergency. The housing must be reliably grounded to avoid the risk of electric shock.
If it is necessary to move the machine, be sure to cut off the power before operating.
