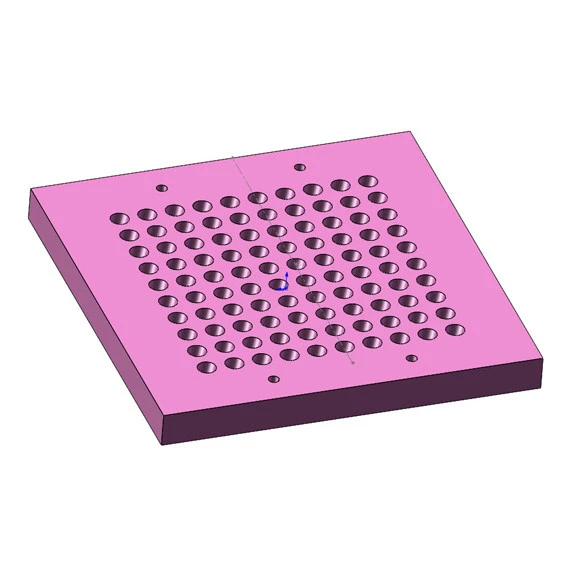

Supporting Template for CBD 100 Hole Atomizer

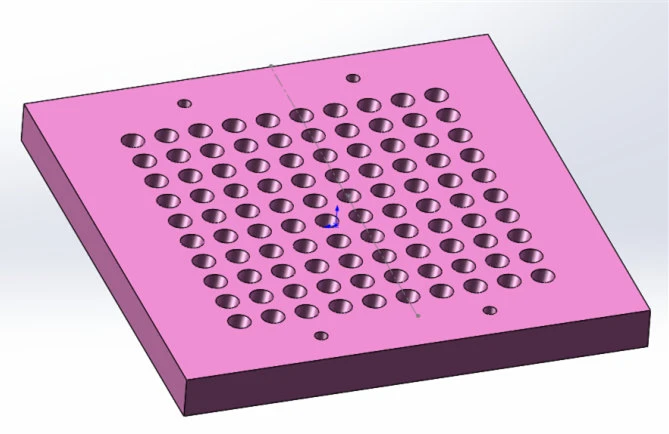

The CBD 100 hole ink cartridge support template is a plastic template used for filling equipment, which is used to support and fix ink cartridges, and to control the amount and quality of ink cartridge filling. It is a tool used to prevent ink cartridges from moving or tilting during operation. This template has been accurately designed and manufactured according to the specific requirements of the filling equipment, and can be applied to any brand or model of filling equipment.

1. Function

(1) Accurate hole position: The precision machining of the template ensures that the position of each hole is accurate, ensuring that the ink cartridge can be correctly placed on the template and avoiding collisions between different holes.

(2) Fixed function: The main function of this template is to fix and support the ink cartridges, avoiding them from loosening and moving during the filling process, which can affect the filling quantity and quality.

(3) Volume and weight: This template has a lightweight volume and weight that can be easily placed on the filling equipment without any impact on the machine's own motion or performance.

(4) Removable design: The various components of the template are designed in a detachable form, making it easier and faster for the filling equipment to remove residues and maintain cleanliness during the cleaning process.

(5) Multiple materials: This template can be made of chemical resistant materials such as PE, PP, POM, PVC and their composite materials, with high wear and corrosion resistance, and can be used in various environments and application conditions.

2. Purpose

(1) Ensure the quality of the filling process: This template ensures the position of the ink cartridge is fixed, preventing the ink cartridge from moving during the filling process, thereby ensuring the filling quality.

(2) Improving work efficiency: The design of this template can save time and labor, simplify the equipment operation process, and install ink cartridges more quickly, thereby improving production efficiency.

(3) Easy to clean and maintain: The template design is reasonable, making the equipment easier to clean and maintain, and the maintenance of the equipment is also simpler.

(4) Product safety: This template has a perfect appearance and internal structure, is easy to install and uninstall, and will not cause any damage to the production line, thus ensuring the safety of personnel and the normal operation of the machine.

(5) Reduce production costs: This template can reduce incorrect ink cartridge filling, thus reducing waste production rate and thus reducing production costs.

(1) Precision machining: The filling equipment CBD 100 hole ink cartridge support template adopts modern precision machining technology to ensure product quality and accuracy.

(2) Safety: The design performance of this template is stable, the raw materials are safe and reliable, can meet high standards of production requirements, and ensure the safety of personnel and the normal operation of the machine.

(3) Economy: The template has a long service life, is wear-resistant and durable, is not easily damaged, and can significantly reduce maintenance costs.

(4) Removability: The structural design of the support template for the CBD 100 hole ink cartridge of the equipment is reasonable, which can facilitate disassembly and cleaning to ensure the cleanliness and hygiene of the equipment.

(5) Customizability: This template can be customized according to the needs of different production lines to meet different production requirements.

The size of the CBD 100 hole ink cartridge support template can be customized according to the manufacturer's requirements and needs Typical dimensions are as follows:

(Regular template size: 195x195x20, 215x215x20)

The above dimensions are for reference only, and manufacturers can customize them according to customer requirements.

The CBD 100 hole ink cartridge support template for filling equipment is a plastic template used for filling equipment. Its main function is to fix and support the ink cartridge, avoiding looseness and movement of the ink cartridge during the filling process, thereby affecting the filling quantity and quality. The template is designed reasonably, easy to clean and maintain, and easy to operate. It can be customized according to the needs of different production lines, better adapting to market demand.
