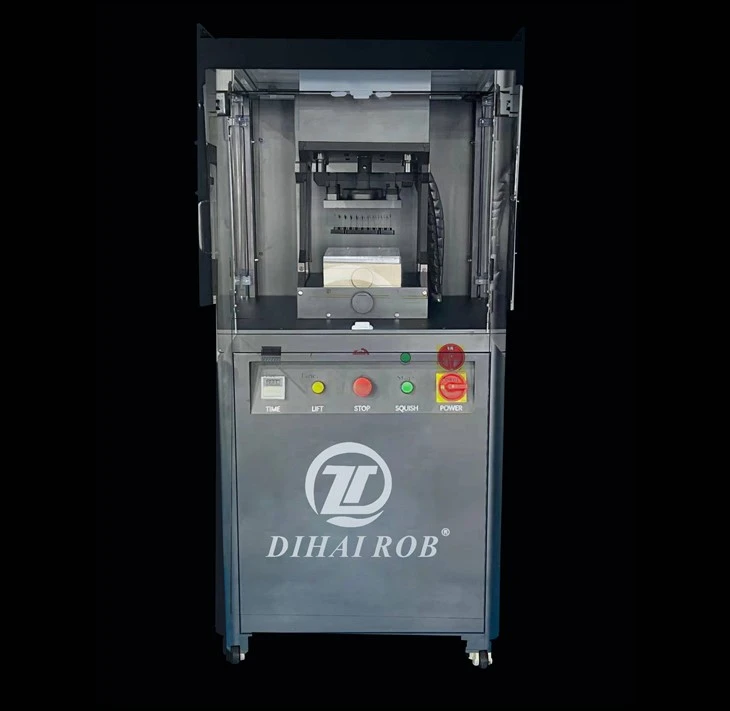

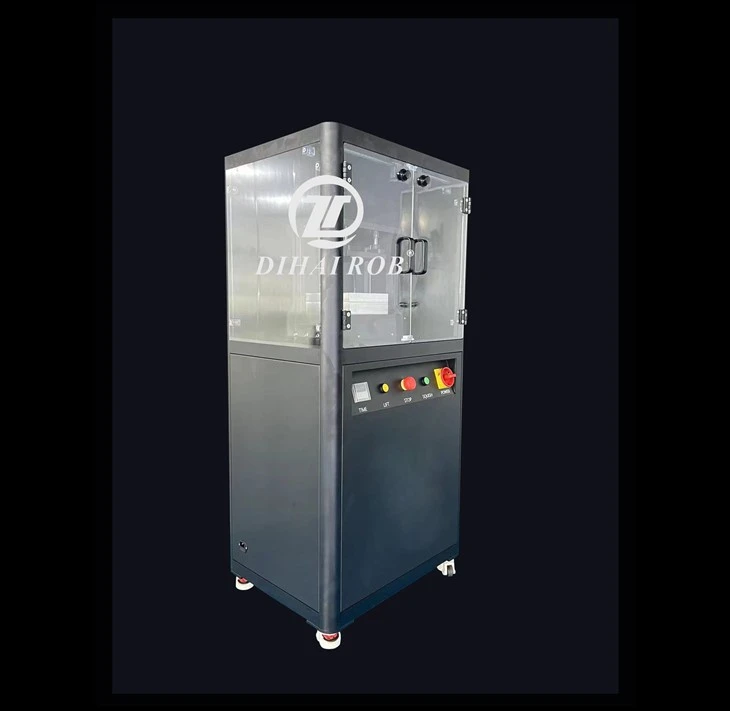

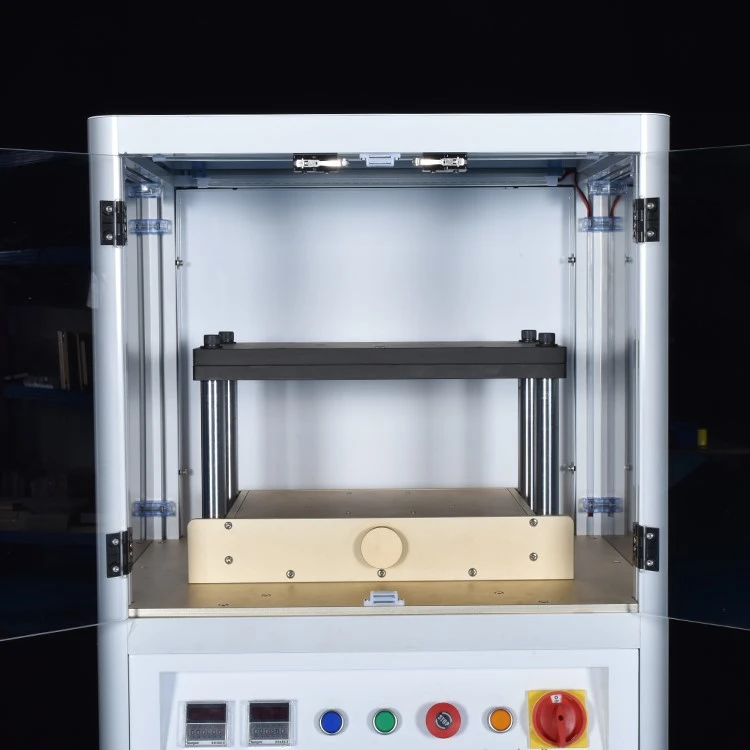

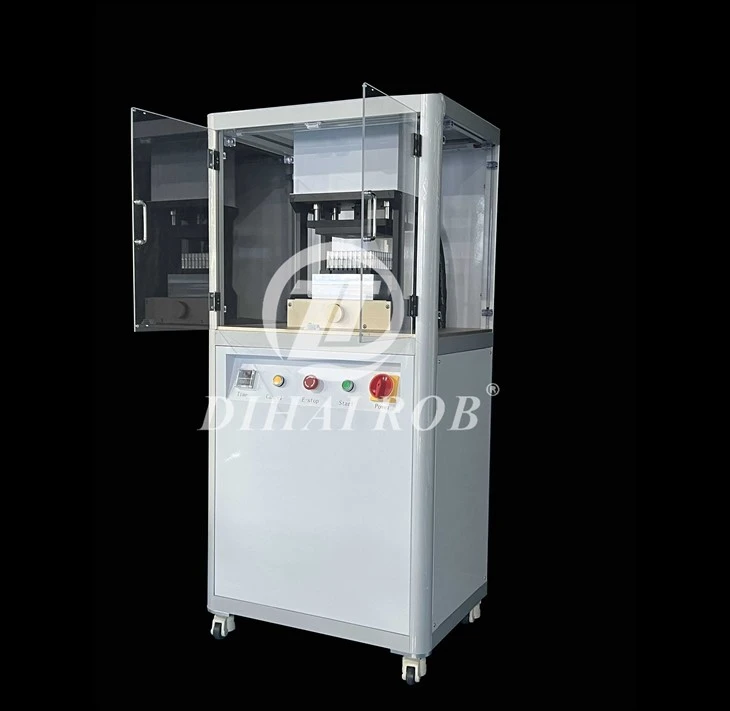

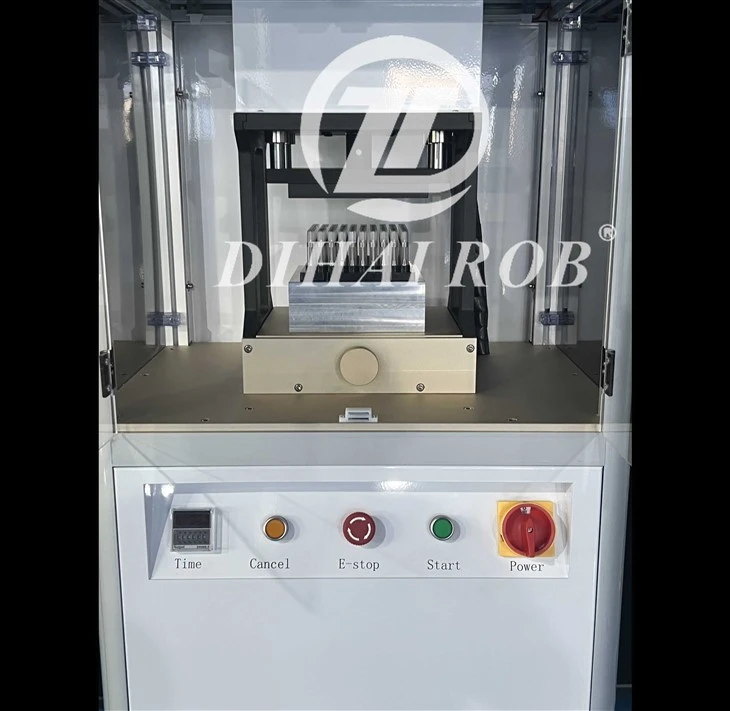

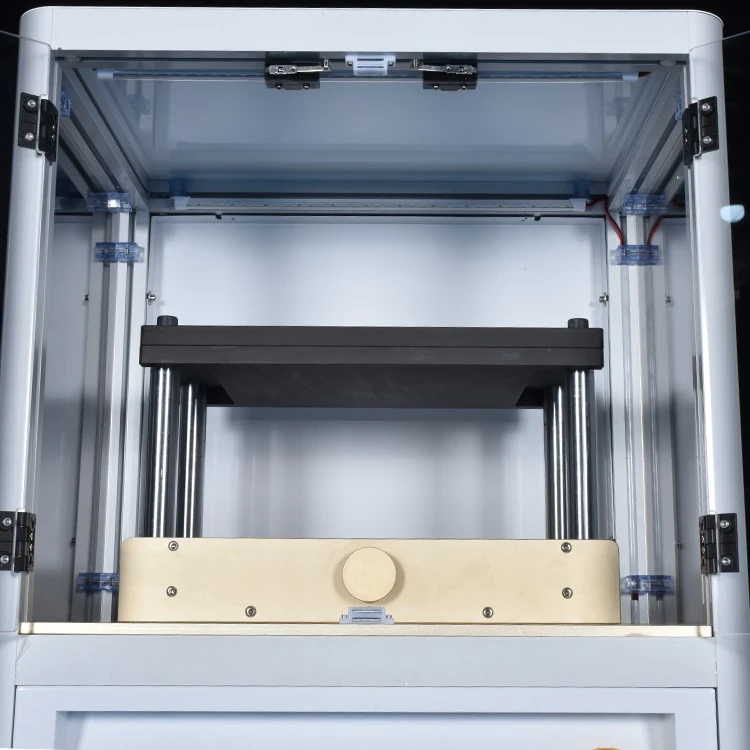

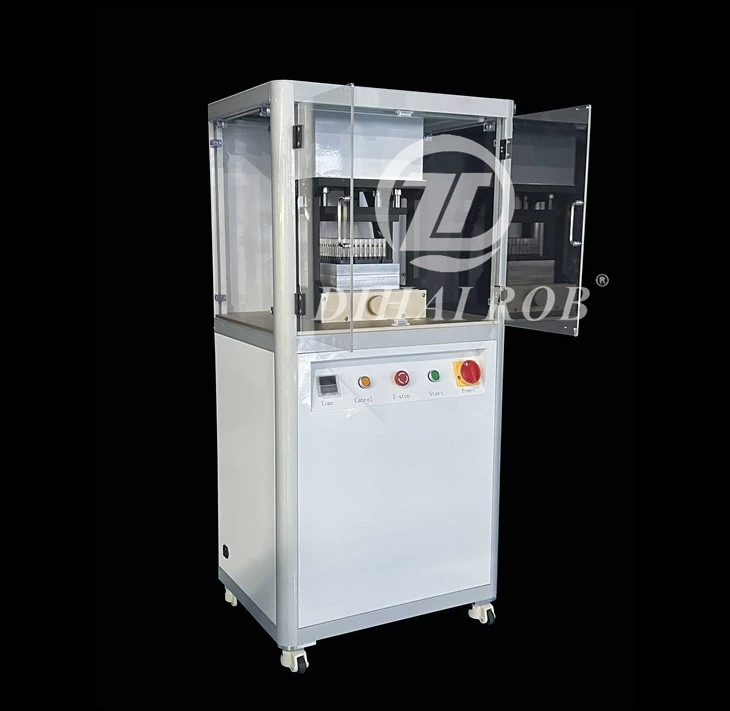

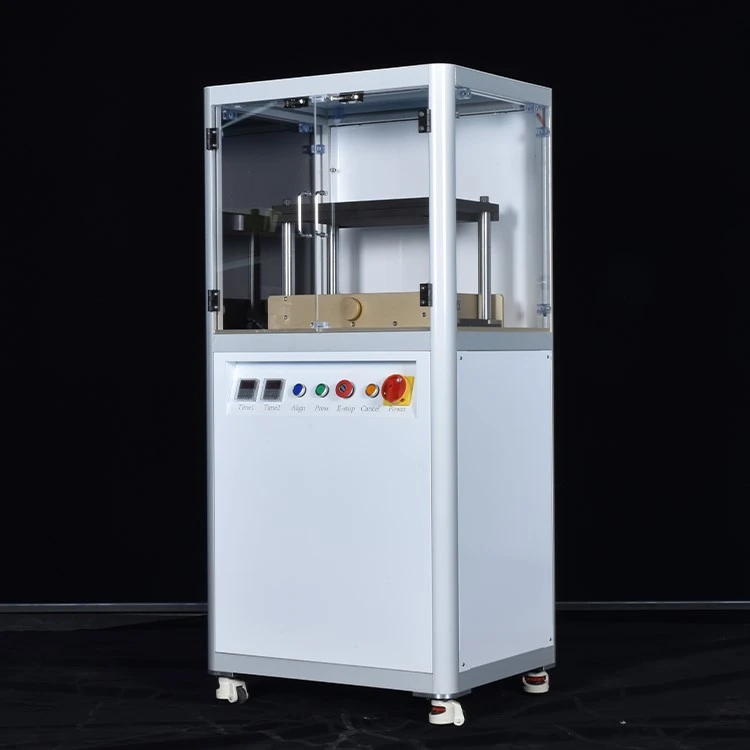

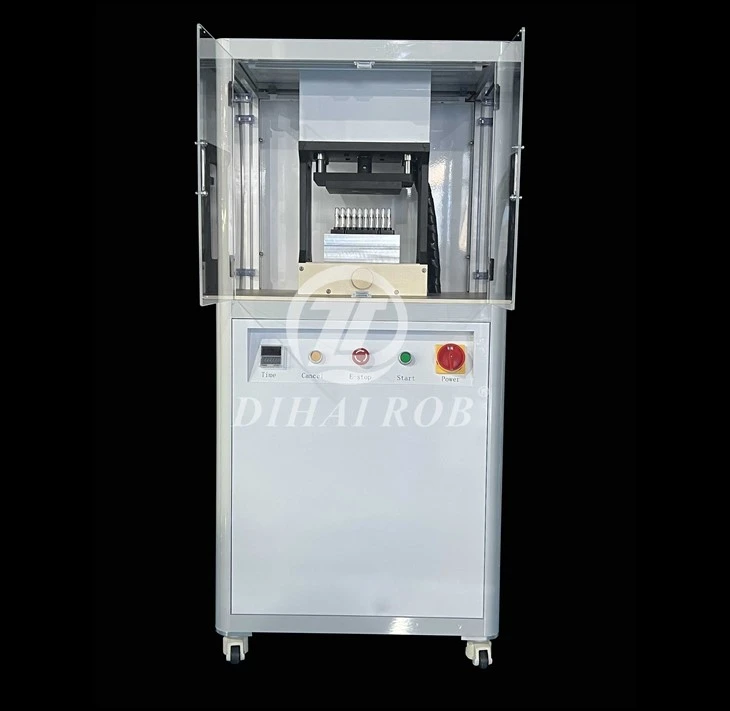

CBD 100 Holes Capping Machine
A Ground-Breaking Cartridge-Capping Machine (CBD 100 Holes Capping Machine)
Cap entire trays of cartridges with the push of a button. The capping machine is designed to work alongside our fully and semi-automatic cartridge-filling machines and eliminate the inefficiencies of capping cartridges by hand. Able to accommodate most press-fit mouthpieces, the capping machine uses a hydraulic press to securely cap roughly 3000 cartridges per hour. As always, every machine comes standard with our industry-leading customer support, consultation, warranty, training, and calibration assistance.
Main Structure and Working Principle
1. Main structure
It is mainly composed of frame, press fixture and hydraulic station device. (The equipment is shipped as a whole, without customer installation)
2. Working principle
This equipment is used for the pressure mounting of the atomizer cigarette holder of the electronic atomizer. It is composed of frame, press-fitting fixture and hydraulic station device. The mechanical devices of the equipment include: frame assembly, press-fitting assembly. The coordinated operation of each component enables the electronic smoker to compact the cigarette holder simply, conveniently and accurately.
Main Performance Parameters
|
Project name: desktop capping machine |
DHC5E |
|
Input voltage (V) |
AC110VAC 60Hz |
|
Input power capacity (power) |
800W |
|
Applicable atomizer length range |
20-85mm |
|
Equipment size (length, width and height) mm |
650x500x1320mm |
|
Equipment weight |
175kg |
|
Ambient temperature |
Temperature10~40℃ |
|
Working pressure (Kg) |
4500Kg |
|
Control mode |
Hydraulic control |
Specifications
Caps 100 cartridges disposables or pods in 30 seconds
Works with snap top or lower PSI compression cartridges
Works with 10x10 or 9x13 Grid
Easy setup
One year parts and labor warranty
No calibration - plug and play

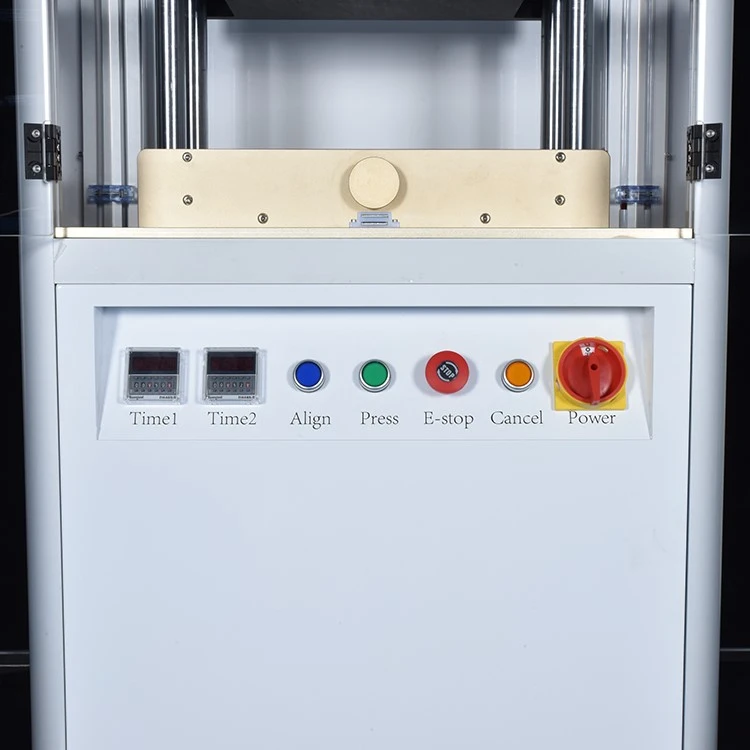

Two step press process to align and lock mouth pieces in place
Footprint: 19.5 x 54.5 x 25.5
Power:
• 110VAC
• 15A minimum outlet
• FLA: 11A
• NEMA 5-15P
Superiority
The Captain H100 hydraulic capping machine will improve your capping speed to avoid loss of product due to leakage if you don't cap in time. The CaptainH100 caps 100 cartridges in less than 30 Seconds. No more screwing on caps by hand and wasting time on tedious tasks! It's the capping machine you've been looking for at an affordable price!
