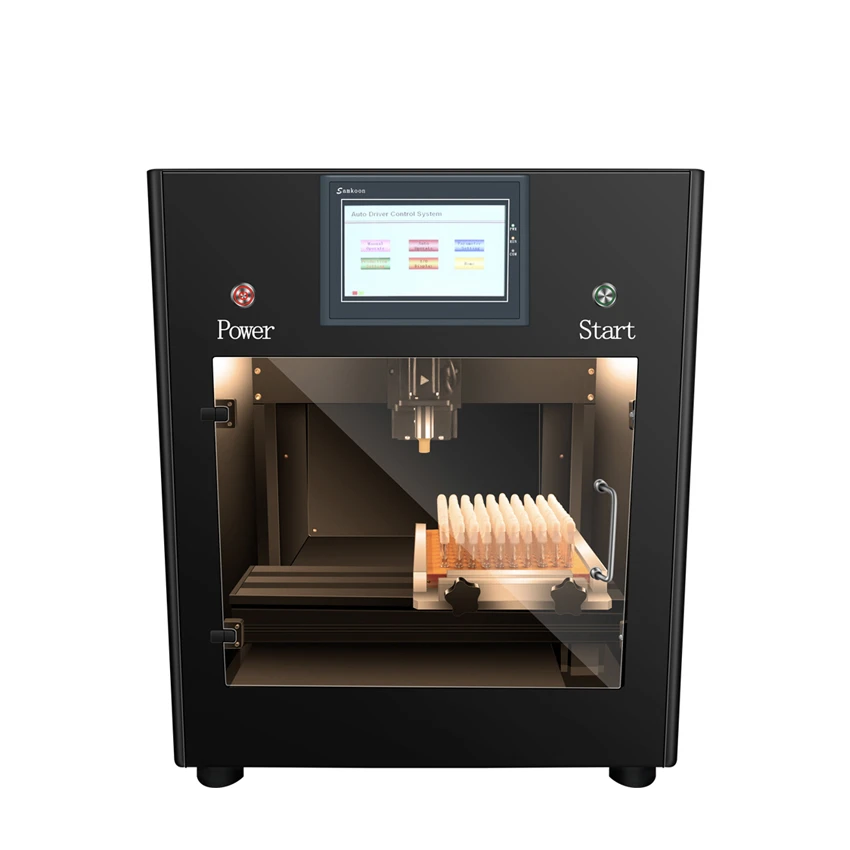

Automatic Mini Desktop Vape Full Cover Screwing Capping machine
II. Main Structure and Working Principle:
1. Main Structure
It mainly consists of mechanical devices and electrical control devices. The electrical part adopts a touch - screen display. (This equipment is shipped as a whole assembly, and there is no need for customers to install it by themselves.)
2. Working Principle

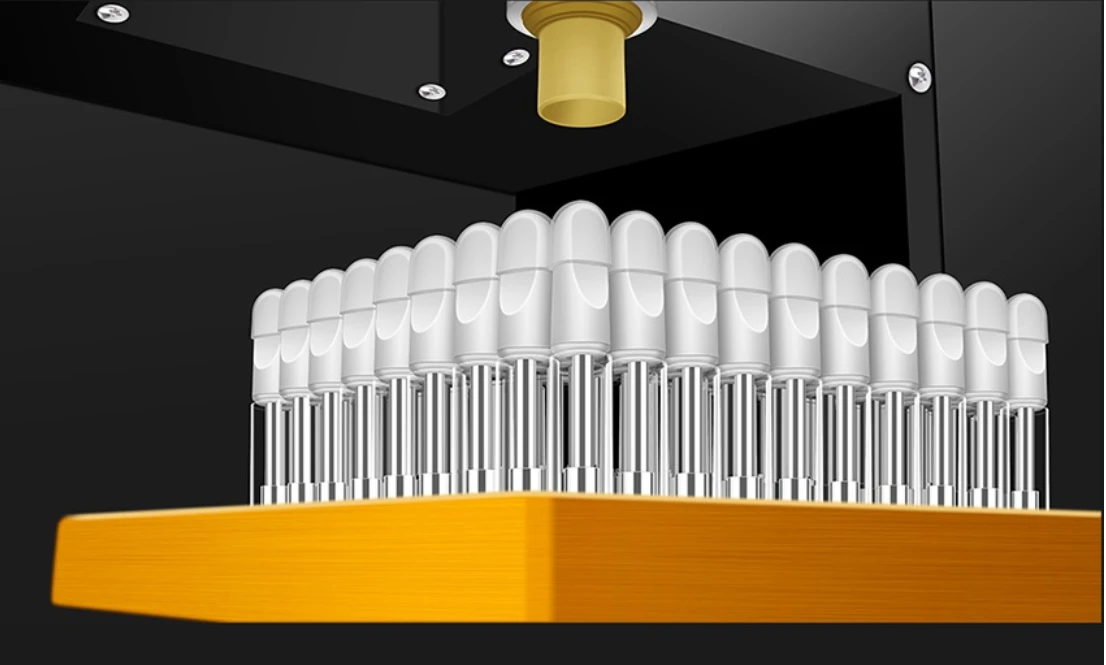

This equipment is used for capping the nozzles of various e - cigarettes. It is composed of mechanical devices and electrical control devices. The mechanical devices include: an electric rotation component, a Z - axis lifting component, an X - axis moving component and a Y - axis moving component. Each component operates in coordination to enable the e - cigarette nozzles to be simply, conveniently and accurately screwed onto the atomizer. Through torque, positioning and other sensors, the data of the equipment is transmitted to the touch - screen display, and the equipment can be automatically controlled, and various capping parameters are automatically displayed in real - time.
Essential Details
|
Type: |
Capping machine |
|
Machinery Capacity: |
1000BPH |
|
Packaging Type: |
Case |
|
Automatic Grade: |
Automatic |
|
Driven Type: |
Electric |
|
Voltage: |
Single - phase AC 110V AC 60Hz |
|
Place of Origin: |
Guangdong, China |
|
Dimension (L*W*H): |
550 x 660 x 650
|
|
Weight: |
70 KG |
|
Environmental conditions temperature : |
0~150℃
|
|
Machinery Test Report: |
Provided |
|
Video outgoing-inspection: |
Provided |
|
Warranty of core components: |
1 years |
|
Core Components: |
Motor |
Automatic Mini Desktop Vape full Cover Screwing Machine
The Automatic Mini Desktop Cartridge Filling Machine with Heating Function, which is designed for CBD, THC, and Vape, is a state - of - the - art piece of equipment. It is developed to accelerate the e - liquid cartridge filling process. Thanks to its compact size and intelligent automation features, this device is highly suitable for both personal and commercial applications.
Entering the system: After the equipment has been inspected and everything is normal, power on the equipment, press the main power switch, and the touch - screen HMI will enter the system Auto Driver Control Machine.
High - efficiency: It can quickly cap multiple e - cigarettes simultaneously, greatly improving production efficiency and saving time and labor costs.
Accuracy: It can accurately complete the capping operation, ensuring that the mouthpiece caps are installed in place and reducing quality problems caused by improper installation.
Automatic Mini Desktop Full - cover Screwing Capping Machine for Vapes
Convenience: It is easy to operate. Operators can learn to use it with simple training, reducing the skill requirements for operators.
Versatility: It may be suitable for capping various types and specifications of e - cigarettes, increasing the universality and application range of the equipment.
Pre - operation Inspection
- Check whether the position of the X - axis moving component is at the right - most origin position, whether the position of the Y - axis moving component is at the front origin position, and whether the Z - axis lifting component is at the upper origin position. Before the demonstration, do not place the atomizer tray on the tray plate of the X - axis component to avoid damage to the atomizer due to misoperation.
Equipment Preparation
First, complete the pre - operation inspection. Make sure that the X - axis moving component is at the right - most origin position, the Y - axis moving component is at the front origin position, and the Z - axis lifting component is at the upper origin position. Also, ensure that the atomizer tray is not placed on the X - axis component tray plate to avoid potential damage during startup.
After confirming that the equipment inspection is completed and everything is in normal condition, power on the device by turning on the main power switch.
Entering the System via the Touch - screen HMI
Once the device is powered on, the touch - screen HMI should start up. Locate the specific icon or menu option for the "Auto Driver Control Machine" system on the touch - screen interface. This option might be clearly labeled, and you may need to navigate through an initial startup menu or a home screen of the HMI software. Then, simply tap on the relevant option to enter the "Auto Driver Control Machine" system. The specific appearance and location of the entry option may vary depending on the design and programming of the HMI software of this particular equipment.
