It adopts an advanced X, Y, Z - axis moving system, which can flexibly adjust the oil injection position to meet the oil injection requirements of atomizers of different specifications. The equipment is equipped with a high - precision liquid volume control device. The error of liquid volume accuracy (rated stroke) is ≤ 1%, and the error of liquid volume accuracy (repeatability) is between 0.3% - 0.7%, ensuring the accuracy of each oil injection. The equipment is easy to operate. Through the user - friendly operation interface, operators can easily set oil injection position parameters and other operating parameters. Its oil storage basin has a maximum capacity of 1300ml, reducing the trouble of frequent refueling.
At the same time, the equipment uses high - quality liquid - contacting materials, including aluminum alloy, silicone, and stainless steel, ensuring the quality of the oil product and the durability of the equipment. It is suitable for large - scale atomizer production enterprises, which can effectively improve production efficiency and reduce production costs.
Basic Operation Methods
Placement method of the atomizer tray:

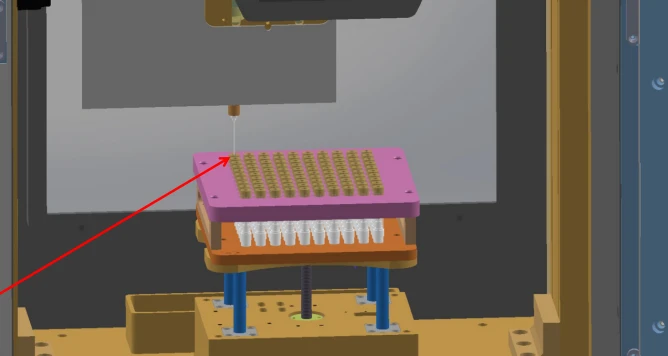

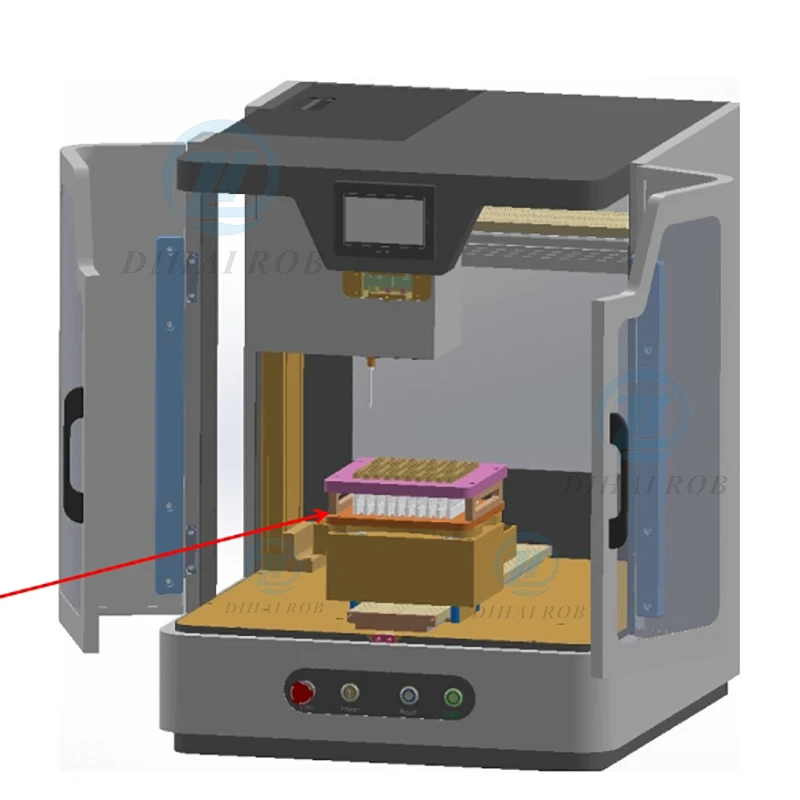

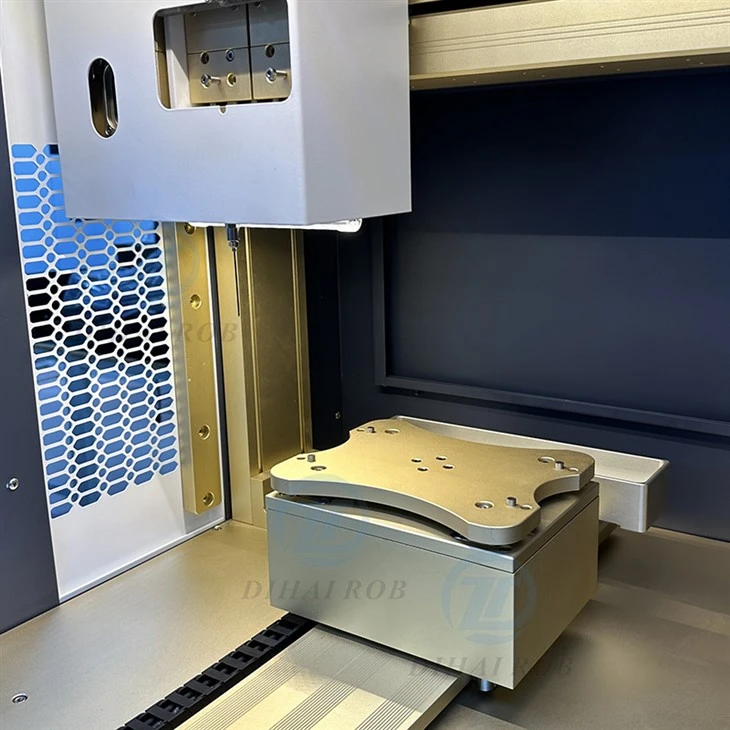

Place the atomizer tray on the tray seat, align the four positioning holes on the tray with the four positioning pins on the tray seat, as shown in the figure.
Setting of Atomizer Position Parameters:
On the home page of the operation interface, click "Reset" to reset all moving axes, and then enter the MHI system operation interface - Manual Operate.

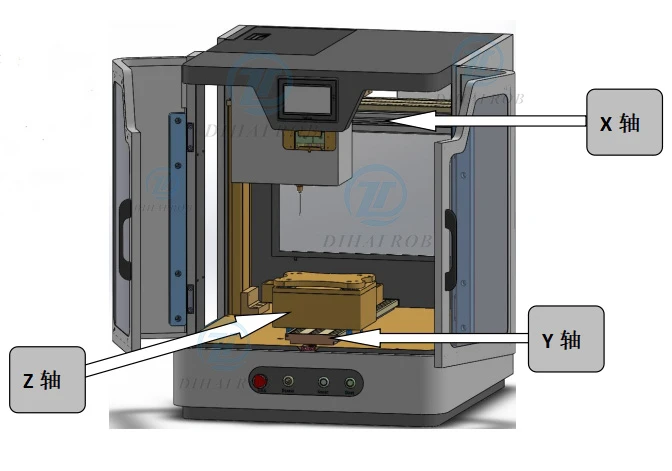

Operate the X, Y, and Z axes to move and observe the oil injection position of the syringe and the first atomizer, as shown in the right - hand figure.
Note: The lengths of the oil injection syringes used for atomizers of different lengths are different. If the length of the atomizer is less than 40mm, use a long syringe; if the length of the atomizer is greater than 100mm, use a short syringe.
Main performance parameters
| Project Name | Parameters |
|---|---|
| Input Voltage (V) | Single - phase AC110VAC 60Hz |
| Input Power Capacity (Power) | 1.2kW |
| Temperature Measurement Range | 0 - 120℃, Accuracy 2% |
| Equipment Dimensions | 620x670x800 (Unit: Please clarify, usually in mm) |
| Equipment Weight | 160kg |
| Environmental Conditions | Temperature 0 - 100℃ |
| Liquid Volume Accuracy (Rated Stroke) | Error ≤ 1% |
| Liquid Volume Accuracy (Repeatability) | Error 0.3% - 0.7% |
| Maximum Capacity of Oil Storage Basin | 1300ml |
| Rated Driving Force of Piston | 0.9N.m |
| Injection Capacity Specification | 0.2 - 7mL |
| Liquid - Contacting Materials | Aluminum alloy, silicone, stainless steel |

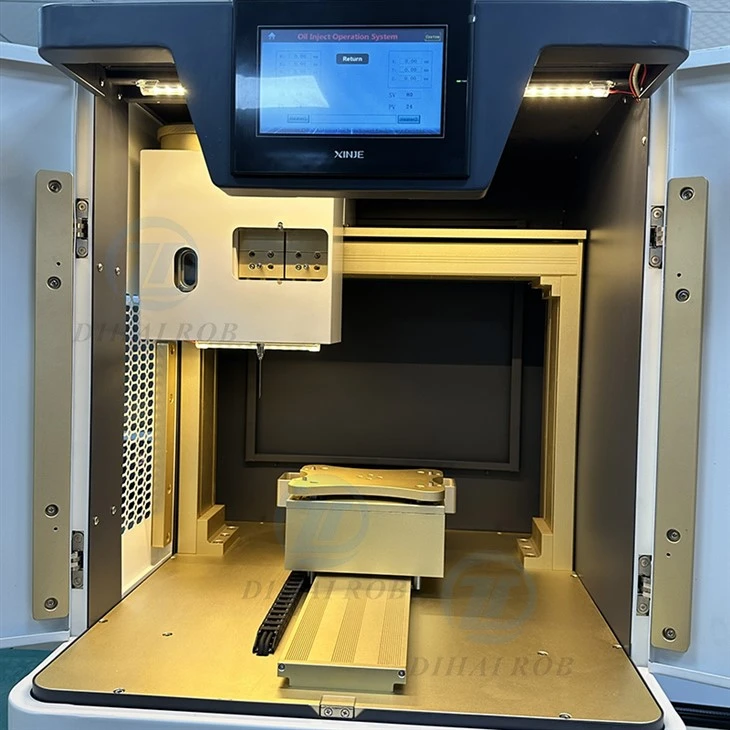

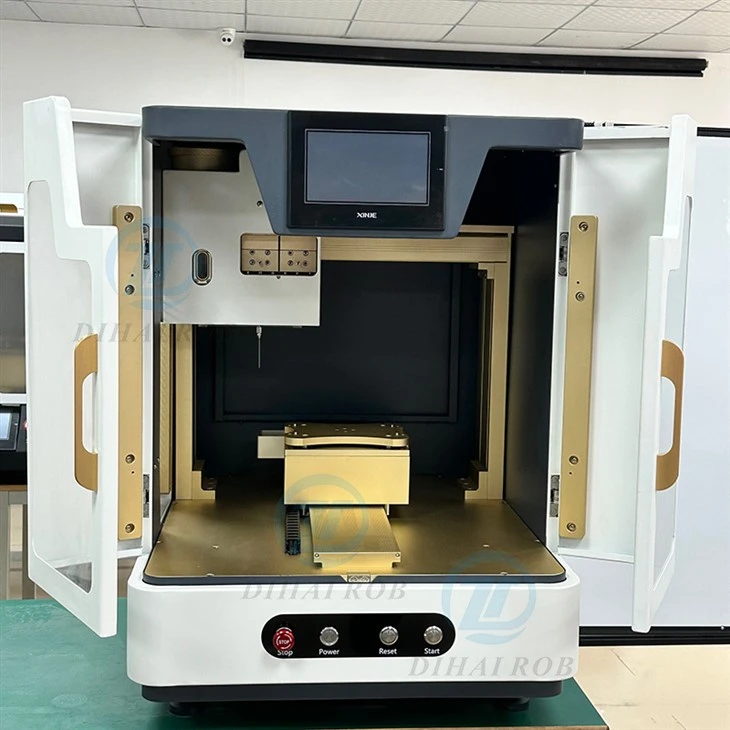

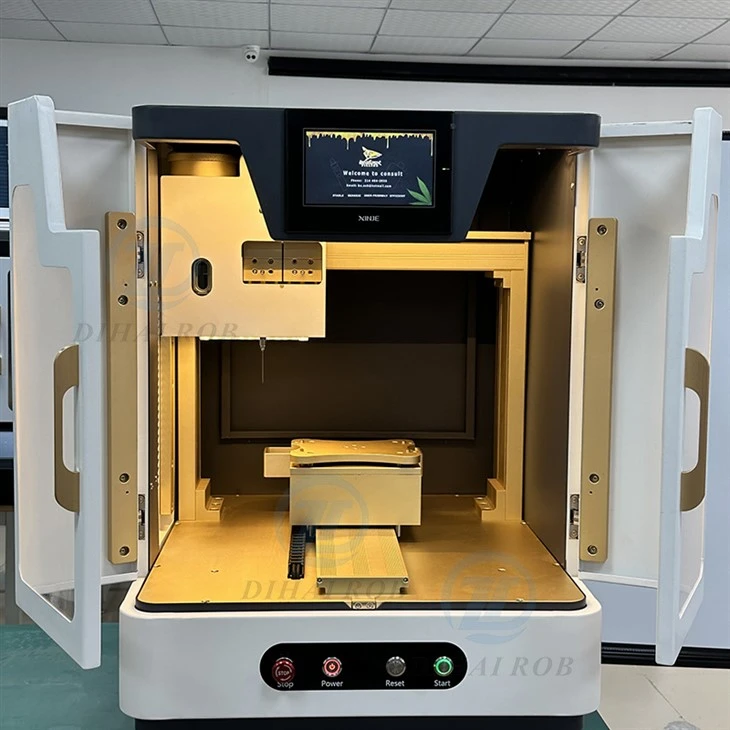

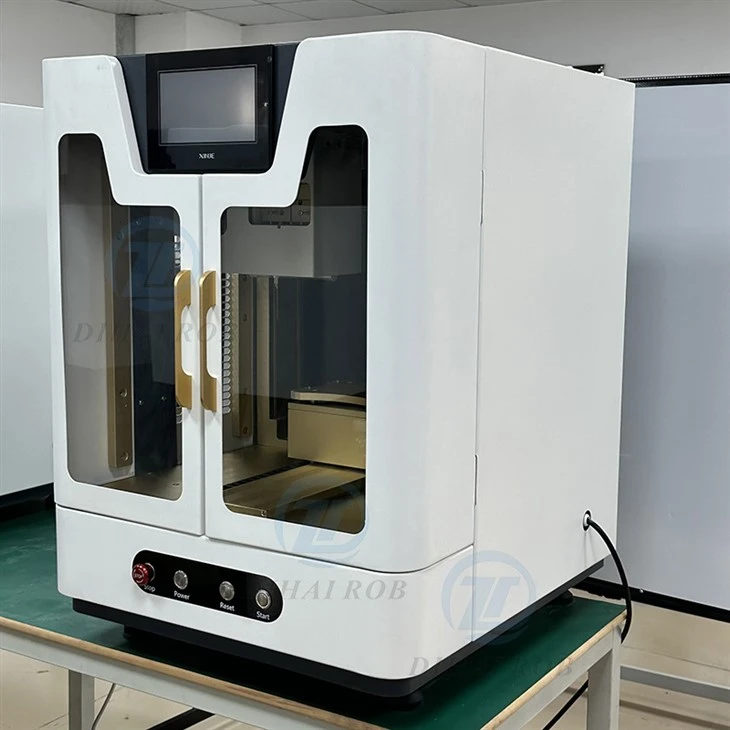

Equipment Overview

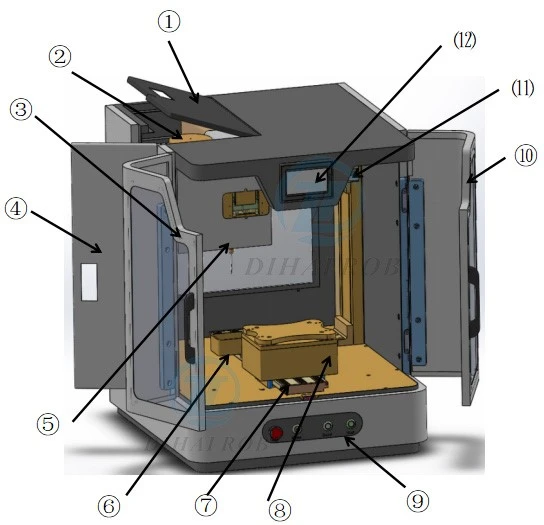

| Serial Number | Name |
|---|---|
| 1 | Upper Flip Cover |
| 2 | Oil Storage Tank |
| 3 | Front Door 1 |
| 4 | Side Door |
| 5 | Oil Injection Pump |
| 6 | Oil Receiving Box |
| 7 | Y-axis Moving Assembly |
| 8 | Z-axis Moving Assembly |
| 9 | Operation Panel |
| 10 | Front Door 2 |
| 11 | X-axis Moving Assembly |
| 12 | Operation Touch Screen |
Determine the oil injection position:
Move the X, Y, and Z axes to the oil injection position of the first atomizer. When "save X1,Y1" is displayed, click the "Enter" key to save the current starting coordinates of the X/Y axes.
Click the toggle key again. When "save Z1" appears, click the "Enter" key to save the highest lifting point Z1 for oil injection on the Z - axis.
Operate the Z - axis to move downward. When observing that the needle reaches the top of the atomizer and there is no collision during left - right movement, click the toggle key. When "save Z2" appears, click the "Enter" key to save the height Z2 of the Z - axis near the top of the atomizer.

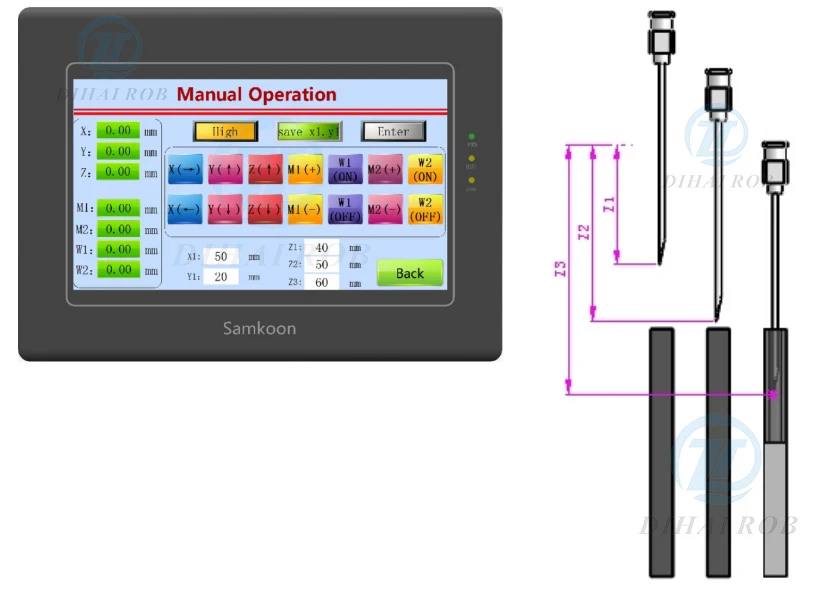

Continue to operate the Z - axis to move downward. Observe the oil injection depth when the needle is inserted into the atomizer. Click the toggle key. When "save Z3" appears, click the "Enter" key to save the oil injection depth Z3 of the Z - axis. Then the position parameter setting is completed, as shown in the right - hand figure.
