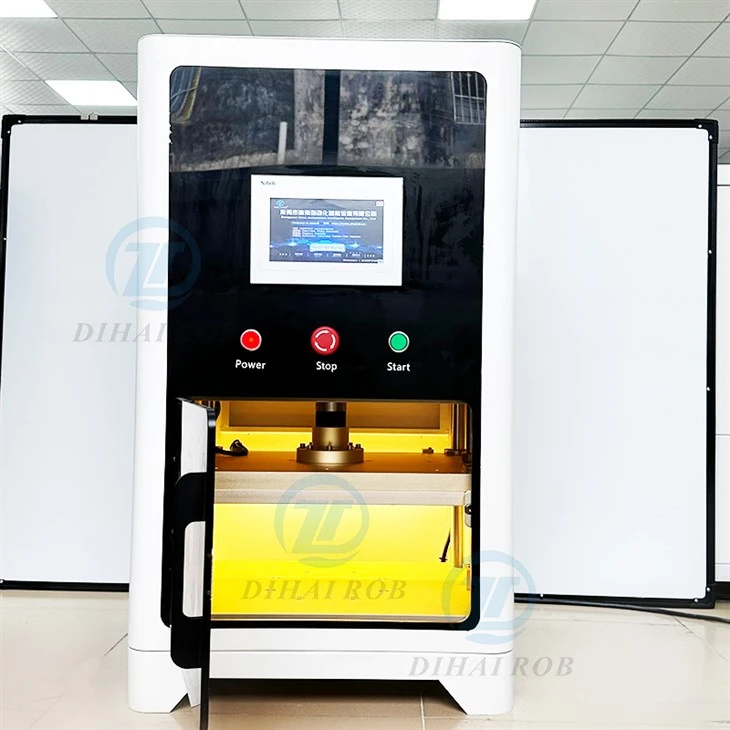

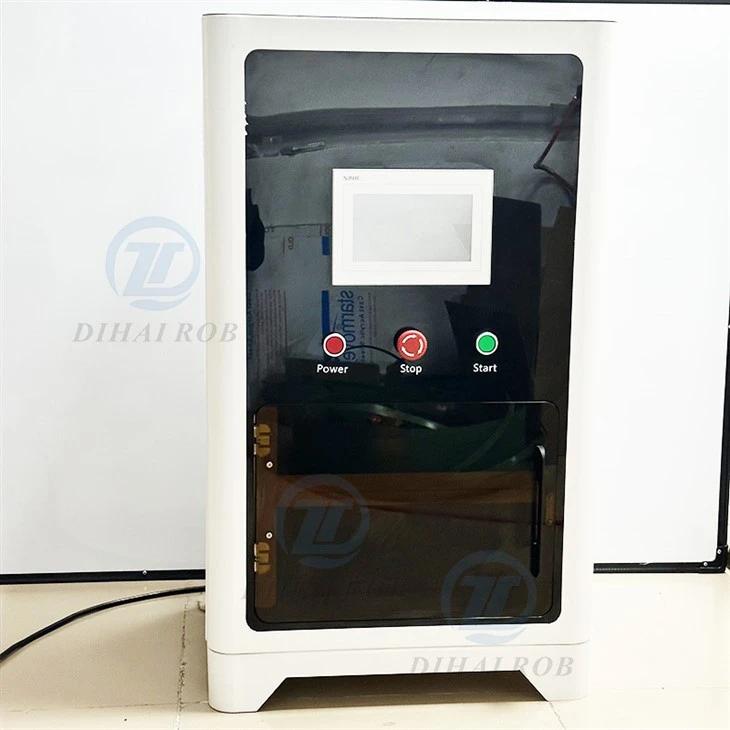

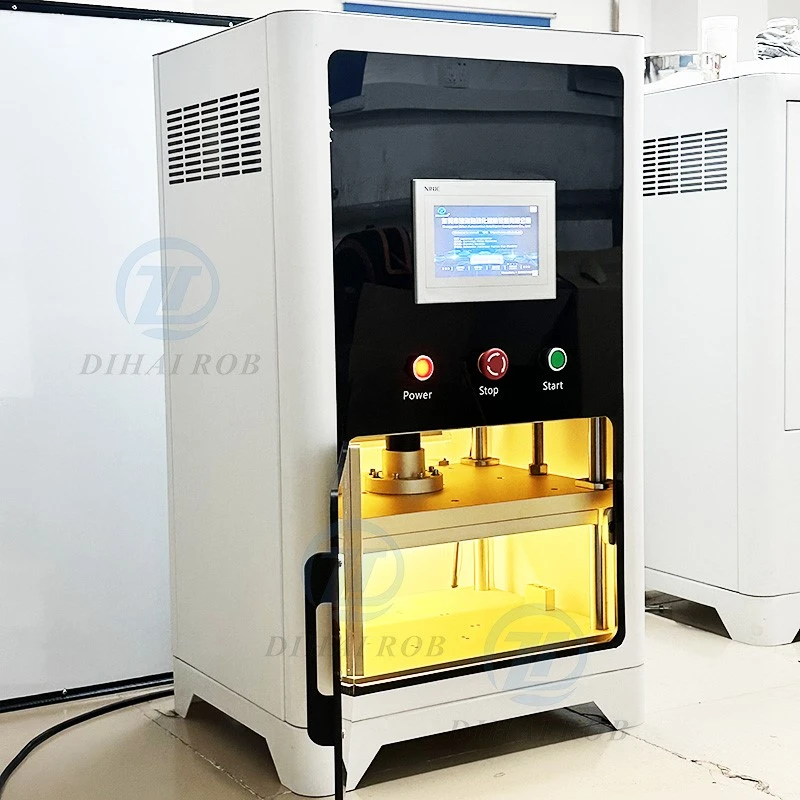

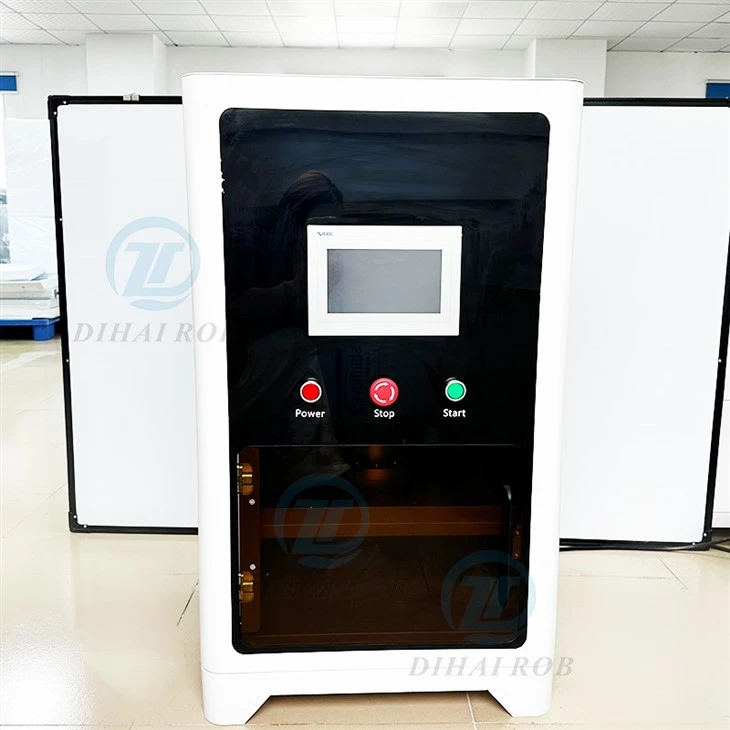

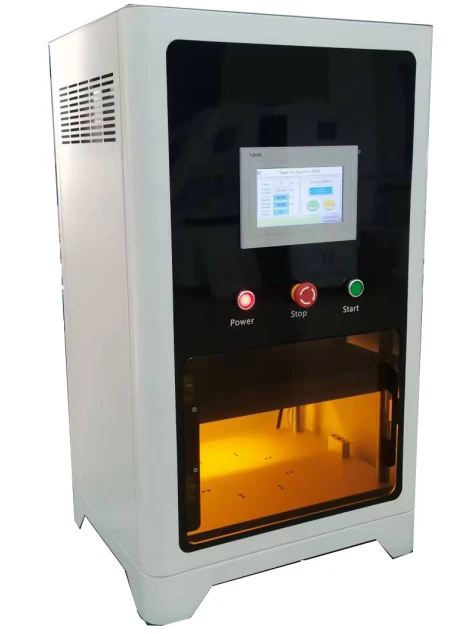

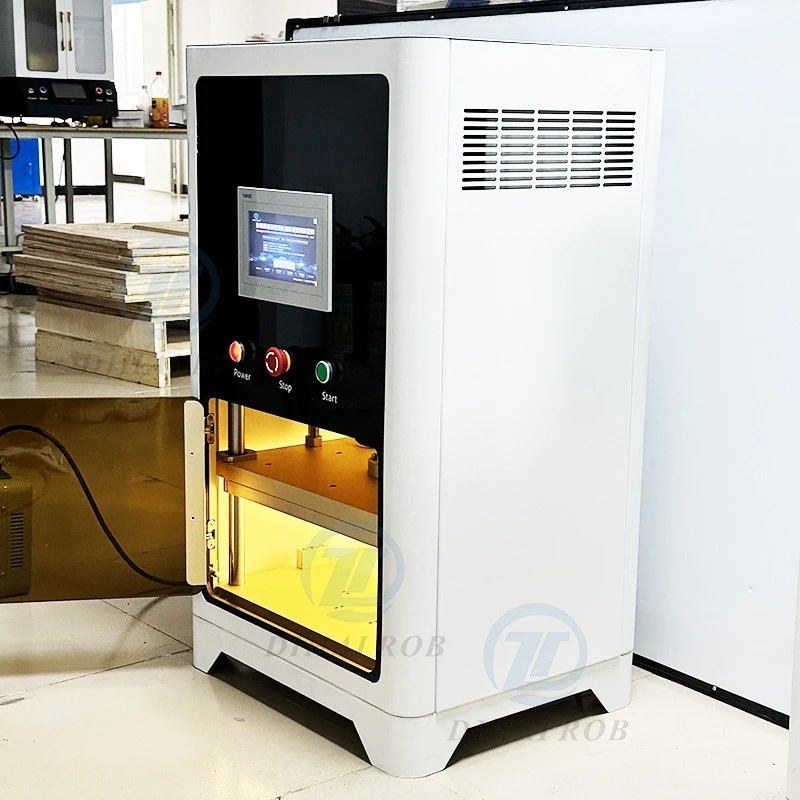

Vertical Automatic Riveting Machine CBD Vape Pen Cartridge Capping Machine

This equipment is used for press - fitting the nozzles of e - cigarette atomizers. Comprising a frame, a press - fitting fixture, and an electric cylinder device, the mechanical devices of the equipment include a frame assembly and a press - fitting assembly. The coordinated operation of each component enables the e - cigarette atomizer to press the nozzle tightly in a simple, convenient, and precise way. The action is simple and reasonable: the pressing action can be performed in three stages, and each action can be carried out separately. Set the height to avoid damage to the product due to excessive instantaneous pressure.

The press - fitting plate stops when it reaches either of the set values first. That is, if the press - fitting plate reaches the set position first and the pressure has not reached the set value, the press - fitting plate stops; or if the pressure of the press - fitting plate reaches the set pressure first and the position has not reached the set value, the press - fitting plate stops.​

Reset Button: Resets the press - fitting plate.​

Alarm Information: Displays the current alarm information when the system malfunctions.​

Start Button: The start switch.​

Parameter Button: Press this button to enter the parameter interface.

Operation is safe; the equipment is equipped with a safety grating. If an object is detected during operation, the machine automatically suspends operation to ensure the real - time safety of operators.​

The operation is simple: the pressing height is adjusted before the equipment leaves the factory, and it can be used after receiving the equipment and turning it on. There is no complicated debugging process. If you need to modify the lamination height, you can directly enter the value, and it only takes a few seconds.​

It is extremely efficient: it only takes a few seconds for the equipment to complete one process. When used with a jig, 100 products can be pressed simultaneously in one operation cycle.​

Faults are extremely low; due to the simple and reasonable structure, the equipment has no easily - failing parts, saving you worry and effort.

Throughout this process, the robust frame of the machine provides a stable structural foundation. It ensures that all components, including the electric cylinder device and the press - fitting fixture, function smoothly and accurately. The coordinated operation of these components enables the machine to achieve efficient and precise press - fitting of atomizer nozzles.​

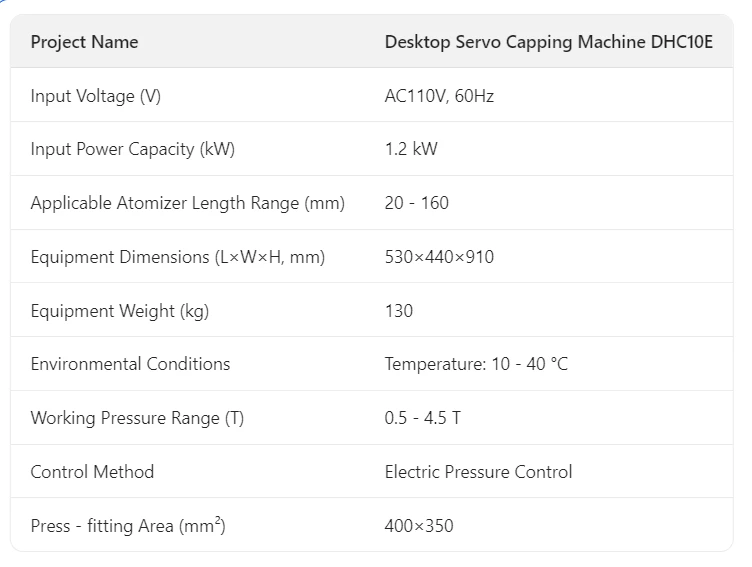

Notably, this machine can adapt to atomizers with different length ranges, from 20mm to 160mm as specified in its parameters. It can also operate continuously and stably within the environmental conditions of 10 - 40 °C, making it a reliable choice for various production scenarios.

.
